This equipment is suitable for the test of electrical electronics, automobiles, motorcycle parts, and seals to prevent sand dust from entering the seals and housing in a sand dust environment.To test the use, storage and transportation performance of electronic and electrical products, automobiles, motorcycle parts, and seals in the sand and dust environment.The purpose of the test was to determine the possible harmful effects of the particles carried by the air flow on the electrical products.
Item No. :
HCTE0036Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C, T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
5 Set per monthLead Time :
90 DaysConventional packaging :

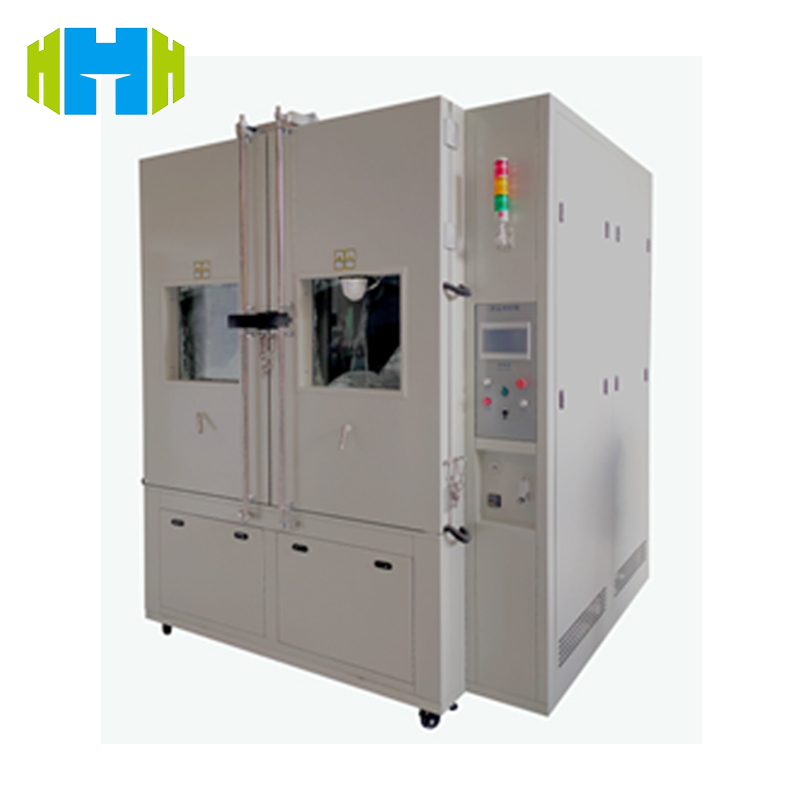

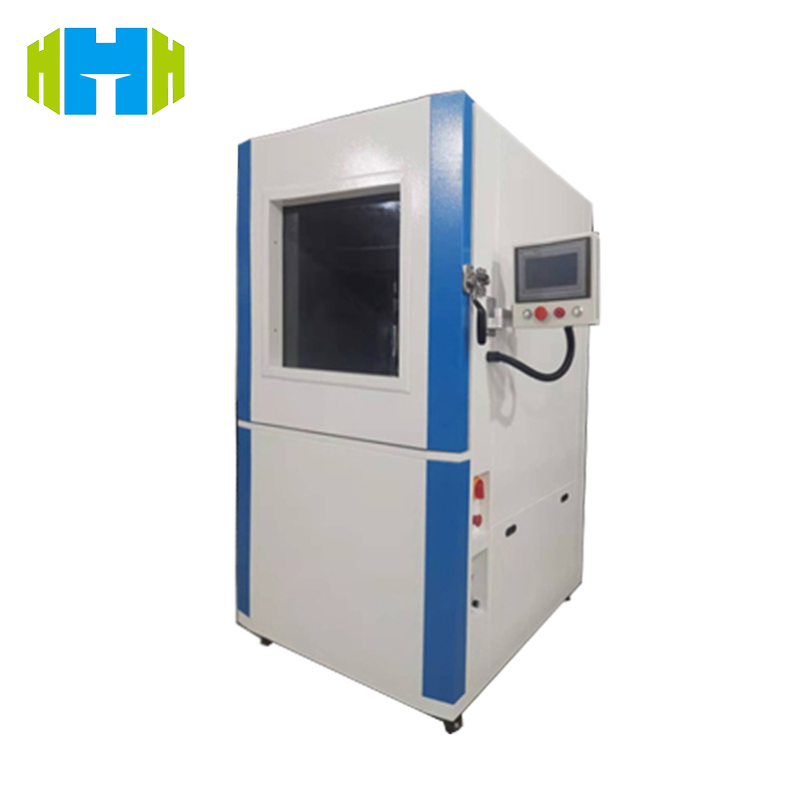

PlywoodSand dust test chamber Auto Parts Test Equipment Slide powder less-than 2m/s IEC60529:2013-13.4 IEC60068-2-68-La2
Product Introduction
This equipment is suitable for the test of electrical electronics, automobiles, motorcycle parts, and seals to prevent sand dust from entering the seals and housing in a sand dust environment.To test the use, storage and transportation performance of electronic and electrical products, automobiles, motorcycle parts, and seals in the sand and dust environment.The purpose of the test was to determine the possible harmful effects of the particles carried by the air flow on the electrical products.The test can be used to simulate open sand and dust air ambient conditions induced by natural or artificial disturbances such as vehicle motion.
Meet the standards：
Design principle：
Design a conical funnel with a dust collection outlet at the bottom. Install the high pressure turbine circulation fan inlet at the vacuum extraction outlet (bottom) to send the extracted dust to the top of the inner box from top to bottom, so that the cycle will begin.
Main technical parameters：
|
model |
AM0018-216 |
AM0018-512 |
AM0018-1000 |
|
Studio Size W * D * H |
600×600×600mm |
800×800×800mm |
1000×1000×1000mm |
|
Outer box size W * D * H |
900×1200×1650mm |
970×1300×1700mm |
1400×1500×1900mm |
|
Temperature range |
Rt+10℃～60℃ |
||
|
Fine dust |
75um below |
||
|
Thick dust |
150um below |
||
|
Airflow rate |
less-than 2m/s |
||
|
Slide powder dosage |
5kg/ m³ |
||
|
Dust concentration |
2kg/m (adjustable) |
||
|
Air metre |
A 1~20L / M digital display air flow meter |
||
|
Metal mesh diameter |
50um |
||
|
Nominal spacing between lines |
75um or below 150um |
||
|
Air blower |
Full-plastic centrifugal fan |
||
|
Vacuum gauge |
0～-10KPa |
||
|
Internal box material |
SUS 201 stainless steel mirror plate |
||
|
Outer box material |
SUS201 or cold tie plate paint |
||
|
Control system |
PLC Controller + Touch Screen Intelligent Control System (Siemens Brand) |
||
|
vacuum system |
Pressure regulating valve, suction nozzle, pressure regulating three-piece set, connecting pipe, vacuum pump |
||
|
Dust heating system |
Stainless steel mica sheet heating cover |
||
|
Fundamental structure |
Composition of test box, vacuum suction outlet, circulating vacuum blowing device, vacuum pumping system, flow valve, heating system, protection drying net, etc |
||
|
Controller control function |
Dust blowing time (stop, blow) h / m/s adjustable |
||
|
Cycle cycle: any adjustable |
|||
|
Preset test time: 0s to 999 h99m99s is arbitrarily adjustable |
|||
|
Power supply mode: off-through-off |
|||
|
Equipment use conditions |
Power supply: 380V; Frequency: 50HZ; power: 3KW |
||
|
Ambient condition |
Temperature of 15℃ ~35℃ The relative temperature of 25%~75%RH has an atmospheric pressure of 86 to 106 KPa |
||
|
Safety protection system |
Line order protection, leakage protection, overtemperature protection, abnormal protection, instrument overtemperature protection |
||
