17.5KW Salt Fog Test Box Auto Parts Test Equipment IEC61701

The salt fog test chamber for automotive components is engineered to assess the corrosion resistance of parts or equipment designed to withstand salt - laden environments. During testing, the appropriate severity level is selected in accordance with the product’s tolerance specifications. Test cycles typically incorporate sequential stages such as wetting, salt fog application, and drying, replicating cyclic corrosive conditions.

Item No. :
HeJin
Minimum Order Quantity (MOQ) :
AM0046
Payment Method :
L/C, T/T
Price :
Negotiable
Product Origin :
China
Supply Ability :
10 set /month
Lead Time :
40 days
Conventional packaging :
Plywood

Inquiry now

Product Details

Salt Fog Test Box For Auto Parts Auto Parts Test Equipment IEC 68 IEC61701 IEC 60068

Meet a criterion:

GB-T10587-2006 Salt Fog Test Chamber Technical Conditions
IEC61701:1995 Salt Mist Corrosion Testing of Photovoltaic (PV) Modules
GBT 2423.33-2005 Environmental Testing for Electric and Electronic Products
IEC 68-2-52 Corrosion Testing Standards
IEC 60068-2-11: 1981 Basic Environmental Testing Procedures - Part 2-11: Tests - Test Ka: Salt Mist

Parameters:

Unit type	Studio Dimensions (D * W * H) mm	Exterior size (D * W * H) mm
AM0046-108-RFHY	450×600×400	Refer to the three view drawing of the contract
AM0046-270-RFHY	600×900×500
AM0046-412-RFHY	750×1100×500
AM0046-663-RFHY	850×1300×600
AM0046-816-RFHY	850×1300×600
AM0046-1080-RFHY	900×2000×600

Performance index	Temperature range	RT+5℃～60℃
	Humidity range	30%～98% RH
	Saturating bucket temperature	RT+10℃～70℃
	Temperature uniformity	2℃ (on empty load)
	Temperature fluctuation	± 0.5℃ (on no-load)
	Salt fog settlement	1～2ml/80 cm².mean h (16 hours)
	Heating rate	0.5℃～1.5℃/min
	Cooling rate	0.5℃～1.0℃/min
	Compress air pressure	2.00±0.01(kg/cm²)
	Spray method	Continuous / periodic selection is optional
	Test frame Angle	Can meet the 15 °, 30 ° tilt test
	Experimental method	NSS test AASS test CASS test
Used Material	Box material	PP enhanced hard plastic plate or 316 stainless steel
	Box cover material	PP enhanced hard plastic plate or 316 stainless steel

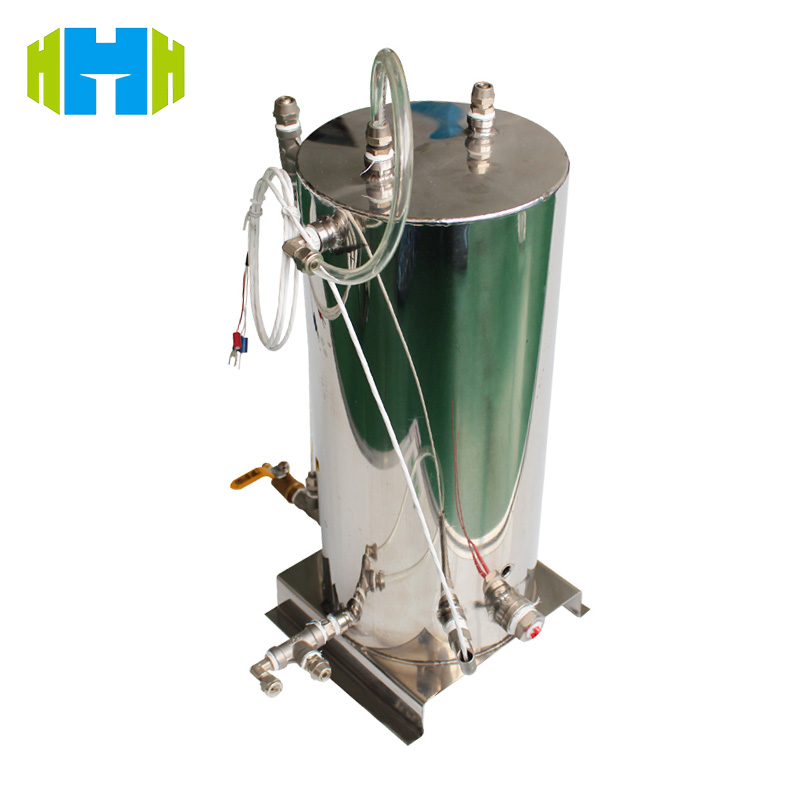

	Air saturated bucket	Import advanced stainless steel SUS304
	Pressurized air tube material	High quality rubber pipe
	Other pipes	Reinforced fluorosilicone rubber tube
The core configuration	Temperature controller	Japan the original imported "UNIQUE" brand temperature and humidity instrument
	Removal of wet and cooling	Single machine or double machine cascade refrigeration
	Temperature sensor	PT100 Platinum resistance thermometers
	Pressure, shrink, machine	Tecumseh, France

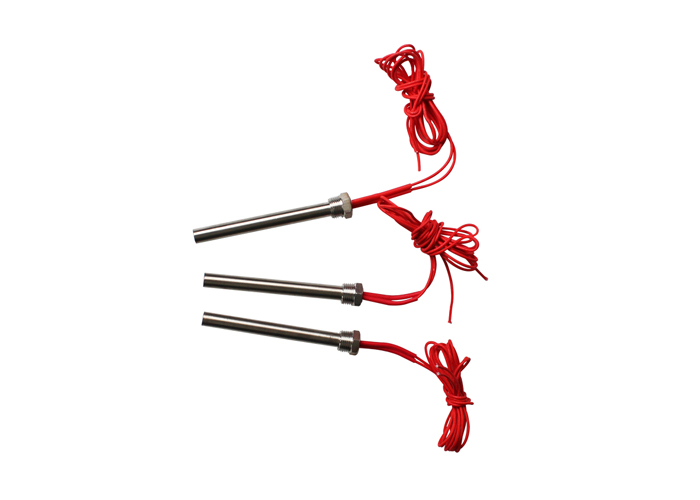

	Heating pipe	Titanium alloy heating pipe
	Circuit breaker	Schneider small circuit breaker (prevent short circuit to control circuit)

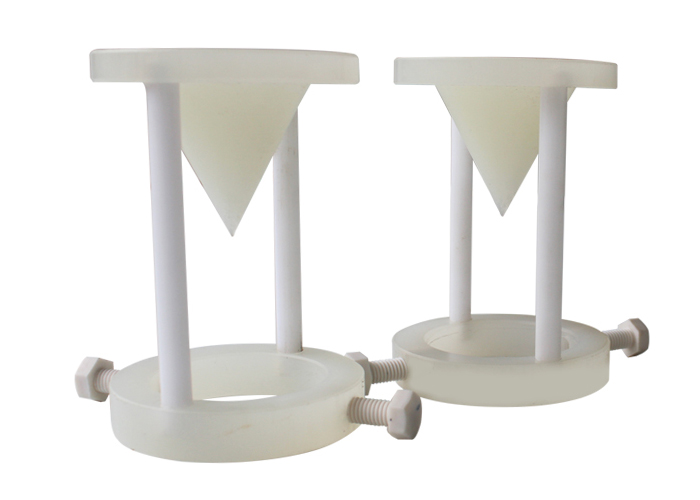

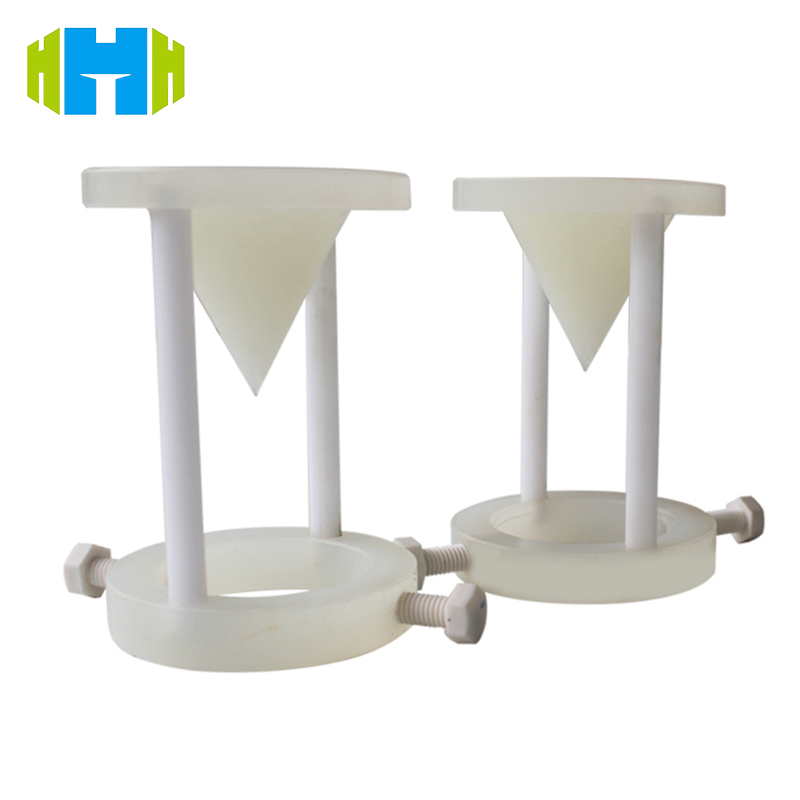

Standard layout		V sample rack, round rod, nozzle, funnel, metering tube and Salt mist exhaust pipe
Security guard		Excessive temperature, overall equipment phase / reverse phase, overall equipment timing, end of rapid fog discharge indication test, low water level protection, leakage, short circuit, Compressor overheating and compressor overpressure
Supply voltage		AC380V±10% 50Hz
Power		8.5KW/10.0KW/12.0KW/13.5KW/15.0KW/17.5KW
Service environment		5℃～＋28℃ ≤85% RH
Note: Data were measured at an ambient temperature of 25℃ and under well ventilated conditions The above parameters are for reference only, and can be customized according to the user's specific test parameters This Technical information is subject to change without notice
