This equipment is used to assess the good performance of the product enclosure and components during the storage, transportation and use in rainy weather.It is mainly suitable for electrical and electronic products, lamps, electric cabinets, electrical components, communication products, automobiles, motorcycles and their parts, outdoor lighting and signal devices and other products to do waterproof performance test and IP waterproof grade test.
Item No. :
AM0019Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C, T/TPrice :
NegotiableProduct Origin :
ChinaSupply Ability :
10 set /monthLead Time :
40 daysConventional packaging :

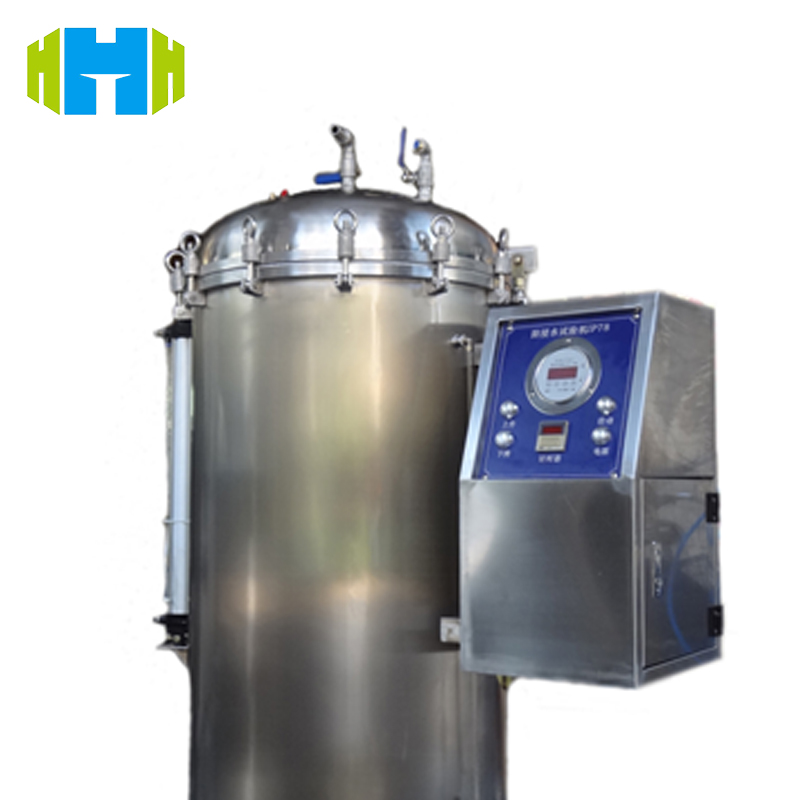

PlywoodIPX8 Immersion pressure testing machine Auto Parts Test Equipment IEC60529 ISO20653 IEC60068
Product Use
This equipment is used to test whether the product housing and seal can ensure the good performance of the equipment and components during storage, transportation and use in a rainy climate environment.
Application
It is mainly suitable for electrical and electronic products, lamps, electrical cabinets, electrical components, communication products, automobiles, motorcycles and their parts, outdoor lighting and signal devices, etc. to perform waterproof performance testing and IP waterproof rating testing.
Compliant standards
GB4208-2017, IEC60529:2013, ISO20653:2006, GB2423.38-2005, IEC60068-2-18:2000, etc.
Parameters
| model | AM0019-IPX8-400 | AM0019-IPX8-600 | AM0019-IPX8-800 | AM0019-IPX8-1000 |
| The inner diameter of the tank is mm | 400 | 600 | 800 | 1000 |
| The tank body is mm in high | 600 | 1000 | 1200 | 1500 |
| Simulation water depth | 0~30m; 0~50m; 0~100m; 0~200m; 0~300m (optional) | |||
| Pressure remains range | Normal pressure ~300kap; normal pressure ~500kap, normal pressure ~1000kap; normal pressure ~2000kap; normal pressure ~3000kap (optional) | |||
| The basket weighs kg | 10 | |||
| Stainless steel tank is mm thick | Either 3mm or 5mm | |||
| Time control | 0~99 Minutes and 99 seconds | |||
| Water level display | The scale is added to the water pipe | |||
| Takeup | Handheld-type stainless steel hanging basket | |||
| Control system selection | Pressure gauge control or touch screen control (optional) | |||
| Container | S304 stainless steel tank | |||
| Product characteristics | This water anti-immersion test device with pressure protection riot device and drainage pressure discharge device | |||
| Equipment use conditions | Power supply: 220V; Frequency: 50HZ; power: 2KW | |||
| Ambient condition | Temperature 5℃ to 40℃ relative temperature 85%RH | |||
| Safety protection device | Overloaded power supply, short-circuit protection Ground protection, water shortage protection The alarm sounded | |||
