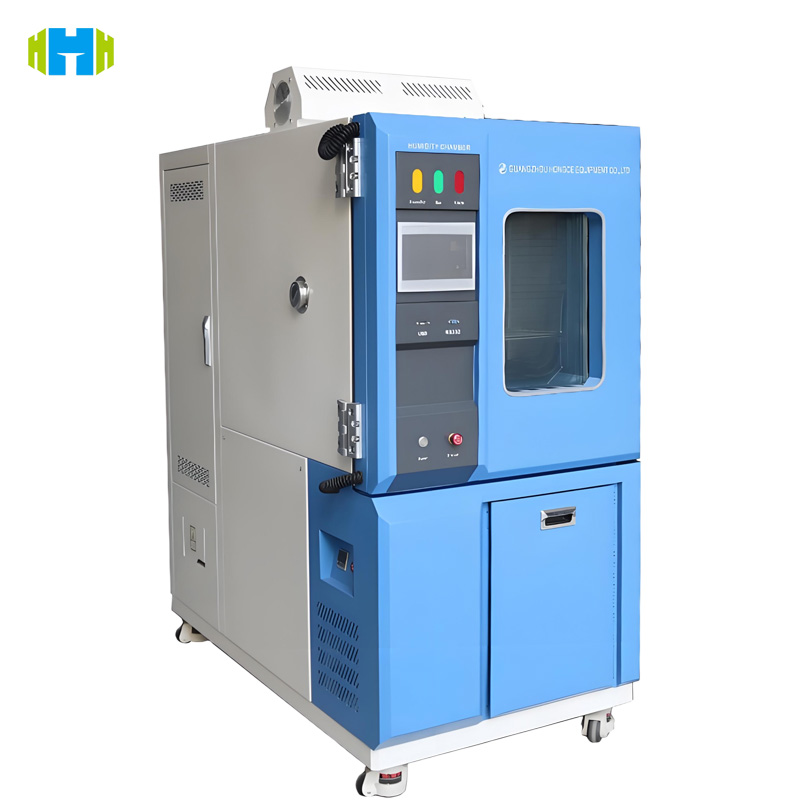

IEC 60884 Programmable Temperature And Humidity Chamber Climatic Test Environmental Test Chamber

This device, compliant with IEC 60884-1 2013 clause 9.2, IEC 60068-3-5, IEC 60068-3-6, and environmental testing standards including IEC 60068-2-1 (Test A), IEC 60068-2-2 (Tests B & Ca), IEC 60068-2-78 (Test Ca), and IEC 60068-2-30 (Test Db), is designed to evaluate the moisture resistance performance of electrical and electronic products, components, spare parts, and materials across varying temperature and humidity conditions.

  • Item No. :

    hejin
  • Minimum Order Quantity (MOQ) :

    HH0811
  • Payment Method :

    L/C, T/T
  • Price :

    Negotiatable
  • Product Origin :

    China
  • Supply Ability :

    10 set /month
  • Lead Time :

    30 days
  • Conventional packaging :

    Plywood

IEC 60884 Programmable Temperature And Humidity Chamber Climatic Test Environmental Test Chamber



Product Features:

High-grade baked steel plate paint or SUS 304 textured stainless steel, polyurethane foam insulation layer. Leakage protector for power supply, anti-dry boil device, water system protection device, extreme high and low temperature protection, temperature deviation alarm, compressor overpressure, overload, water shortage, phase loss protection.



Standard:

  • IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes –Part 1: General requirements’ clause 16.1, clause 16.3.
  • IEC 60669-1 ‘Switches for household and similar fixed electrical installations –Part 1: General requirements’ clause 15.1, clause 15.3.
  • The test device is designed and manufactured according to IEC 60068-2, Test methods-test A: cold, test B: dry heat, test Cab: damp heat, steady state, test Db: damp heat, cyclic.



Parameter:

Product Name Programmable Temperature Humidity Chamber
Volume, size and weight
Working Volume 150L (can be customized)
Inner size W600mm × H600mm × D460mm
Outer size W900mm × H1800mm × D1500mm
Weight 300KG
Temperature controller 7-inch programmable controller (touch screen)
Performance
Temperature range -40℃~+150℃
Humidity range 20-98%HR
Temperature deviation ≤±2℃(without load, under constant state)
Temperature uniformity ≤±2℃(without load, under constant state)
Temperature fluctuation ±0.5℃(without load, under constant state)
Humidity deviation ± 3% RH (above 75%); ± 5% RH (below 75%)
Heating rate 3-5℃/ min
Cooling rate 0.7-1℃/ min
Structure
Outer material 3A cold-rolled steel sheet with electrostatic double-sided plastic spray, color is pearl white
Inner wall material SUS304# mirror stainless steel plate
Insulation materials 100mm rigid polyurethane foam
Observation window Set on the door of the test chamber, size: about 300 × 460mm (width × height), coated with frost-proof insulating glass
Pin holes 1 hole of Φ50mm, on the left side of chamber
Protection system

1 Chamber:

1) Independent over-temperature protector

2) Fan overheating protection

2 Cooling System:

1) Compressor overpressure

2) Compressor overcurrent

3) Compressor overheating

4) Exhaust temperature protection

3 Power system:

1) Power phase loss and phase sequence error protection

2) Leakage protection

3) Heater over-temperature protection

4) Overcurrent protection such as heater short circuit

4 Others: Test chamber shell ground protection
