Dual-Station Vacuum Chamber Helium Leak Detection System: A Key Solution for Boosting Efficiency and Cutting Costs in Mass Production Lines
In industries characterized by high-volume mass production—such as refrigeration, automotive components, and structural parts for new energy vehicles—vacuum chamber helium mass spectrometry leak detection has become the standard for final product inspection due to its unmatched precision in detecting micro-leaks. However, the long cycle times of single-station systems have historically created bottlenecks in production line pacing. The complete process—including vacuuming, helium charging, testing, helium purging, and loading/unloading—can easily take 40 to 60 seconds. This leads to material backlogs from upstream processes and idle time at downstream stations. To expand capacity, many factories have resorted to adding more single-station units, resulting in doubled costs, doubled floor space requirements, and increased maintenance complexity.

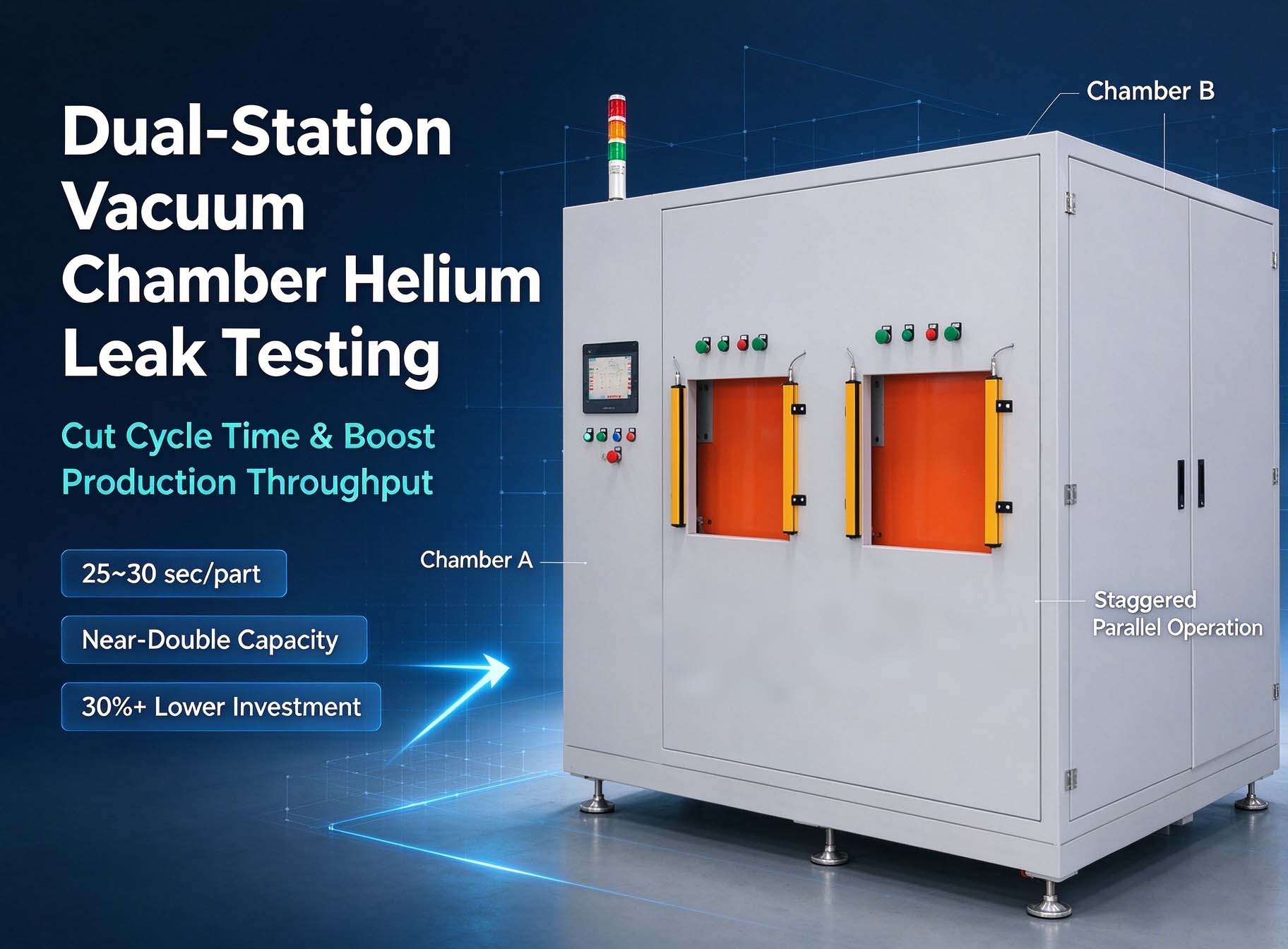

The dual-station (dual-chamber alternating) vacuum chamber helium leak detection system was developed specifically to resolve the conflict between precision and efficiency in mass production. It currently represents the optimal, mature solution for balancing detection accuracy with production throughput.
Core Value of Dual-Station Helium Leak Detection: Dual Optimization of Cycle Time and Cost. Compared to two independent single-station systems, the dual-station approach offers clear advantages:
Nearly Doubled Throughput: While one chamber performs the test, the other simultaneously handles loading/unloading, vacuuming, and helium charging preparations, effectively converting idle time into productive work time.
Over 30% Reduction in Investment Costs: Both chambers share a single leak detector, vacuum unit, helium recovery system, and control system, resulting in high hardware utilization.
40% Savings in Floor Space: An integrated design significantly reduces the footprint and piping complexity compared to two separate units.
Core Principle of Dual-Station Helium Leak Detection: Staggered Parallel Timing
The essence of a dual-station system lies not merely in "joining two chambers together," but in using a single detection main unit, vacuum system, and helium system to drive the two chambers in a staggered, parallel workflow. This transforms the significant idle time inherent in single-station modes into productive work time.
Ultimately, the effective cycle time per workpiece is roughly equivalent to the duration of the longest single process step, rather than the sum of the entire process sequence. A mature, optimized dual-station system typically achieves a cycle time that is 50%–60% of a single-station setup, nearly doubling production capacity.
Three core advantages of a dual-station system compared to two independent single-station units:
Production capacity nearly doubles; cycle times are significantly reduced.
Taking standard refrigeration heat exchanger testing as an example, a single-station unit has a complete cycle of approximately 45 seconds per part. An optimized dual-station system can achieve a stable cycle time of 25–30 seconds per part, increasing the annual capacity of a single production line by over 80% without requiring additional main units or core testing components.
Total investment costs reduced by over 30%.
Two independent single-station units require two sets each of leak detectors, vacuum pump groups, helium recovery systems, and control systems. In a dual-station setup, both chambers share these core systems; costs increase only for the additional chamber and tooling, resulting in a 30%–40% reduction in overall equipment investment. Long-term operating costs are also lower: sharing a helium recovery system yields a higher overall recovery rate, meaning helium consumption per part is actually lower than with two independent single-station units.
Significantly reduced footprint and maintenance complexity.
The dual-station system features an integrated design that shares piping, electrical control cabinets, and the machine frame. The total footprint is about 40% smaller than that of two independent single-station units, allowing for a more compact production line layout. Additionally, maintenance points are reduced—one system manages both stations—and the variety of spare parts is minimized, resulting in a much lower workload for maintenance personnel compared to two independent units.
Four key factors for selecting a dual-station system:
Many devices on the market are labeled "dual-station," yet actual mass-production performance varies widely. When selecting equipment, do not focus solely on the "dual-chamber" appearance; instead, evaluate the following four core design aspects:
Timing and scheduling logic. A mature system employs PLC-based hierarchical, time-division scheduling. During the testing phase, priority is given to ensuring detection accuracy and stability, while the preparation phase involves parallel vacuum evacuation and helium charging, preventing resource contention between the two chambers. Poorly designed dual-station systems often feature two chambers sharing a single main vacuum line; this causes mutual interference during evacuation, resulting in limited cycle time improvements and potentially compromising testing accuracy.
Vacuum distribution and pressure stabilization: Independent vacuum valve assemblies and intermediate buffer tanks are essential to ensure that evacuating one chamber does not cause vacuum level fluctuations while the other is testing. Performance criterion: When both chambers operate simultaneously, vacuum fluctuations in the test chamber must remain within ±2% to avoid affecting test repeatability.
Helium management and recovery efficiency: Helium filling lines require independent pressure regulation to prevent pressure fluctuations; a shared helium recovery system should achieve an overall recovery rate of at least 95%. Many low-cost dual-station solutions omit independent pressure regulation, leading to significant filling pressure fluctuations and severe test result drift.
Modular maintainability: The two chambers should feature independent modular designs; this allows one chamber to undergo maintenance or product changeovers while the other continues partial production, preventing a complete line shutdown.
Ideal Application Scenarios
While dual-station vacuum helium leak testing is not the optimal choice for every situation, it is particularly well-suited for:
High-volume production lines with an annual output exceeding 100,000 units.
Products with high standardization and infrequent changeovers, such as condensers, evaporators, piping, and structural components.
Mid-to-high-end production lines requiring both high precision in micro-leak detection and high production throughput.
Scenarios involving capacity expansion for existing single-station setups where the budget for new equipment is limited.
Tip: When expanding production capacity, avoid simply adding more single-station units; instead, prioritize evaluating the return on investment (ROI) of a dual-station solution. The core value of a dual-station system lies in its design—not merely the number of chambers—so prioritize vendors with proven mass-production experience and validated timing and vacuum system designs.
