This rain test box is an equipment for the protection grade test of electrical equipment for shell protection.It is mainly used to assess and determine whether the shells and seals of various electrical appliances, electrical products and various lighting fixtures can ensure the good working performance of the equipment and components after the water test or during the test.It is also an essential testing equipment for scientific research institutions and quality testing institutions.
Item No. :
AM0021Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C, T/TPrice :
NegotiableProduct Origin :
ChinaSupply Ability :
10 set /monthLead Time :
40 daysConventional packaging :

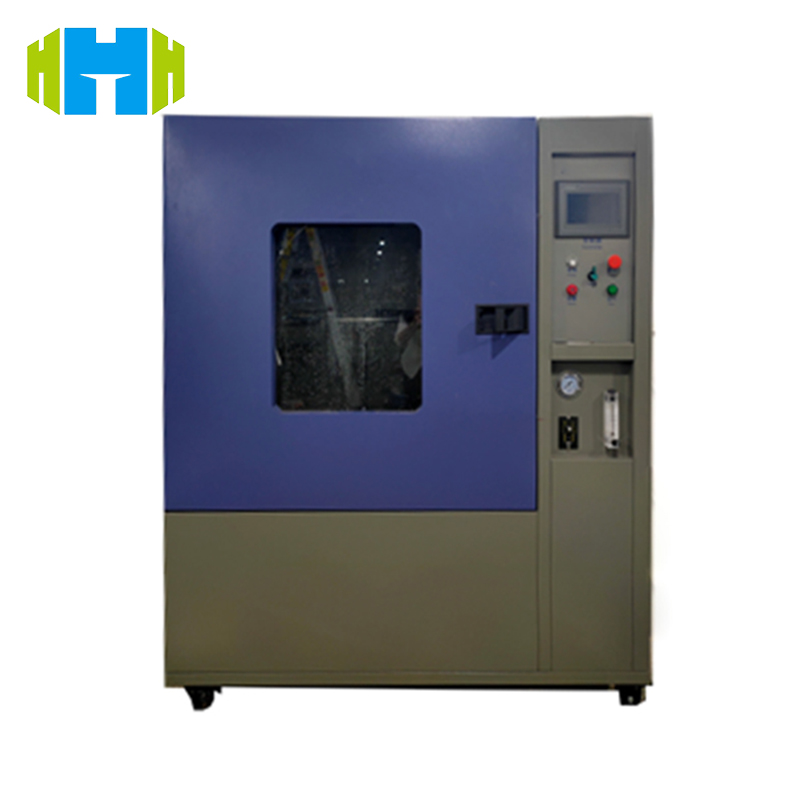

PlywoodIpx34 Rain Test Chamber Iec 60529 Iso20653 Iec60068 Environmental Simulation Test Equipment
Products Introduction:
This is used to test whether the housing and seal can guarantee the good performance of the equipment and components in the rain environment.This product simulates water drop, water splashing water and other environments.It is mainly suitable for communication products, automobile parts, outdoor lighting and signal equipment and IP waterproof grade test; and testing products may be affected by water intrusion during transportation or use to provide reliable basis for product technical standards; the whole test process is completed in the box, water will not splash outside, and the water can be recycled.
widely used in lamps, electrician and electronics, automobile, motorcycle, home appliances, electromechanical and other industries.
Standard:
GB4208-2017, IEC 60529:2013, ISO20653:2006, GB2423.38-2005, IEC60068-2-18:2000 etc.
Parameters:
|
Model |
HCTE0039-IPX34-225 |
HCTE0039-IPX34-500 |
HCTE0039-IPX34-1000 |
HCTE0039-IPX34-1400 |
|
|
Internal Box Size W * D * H (mm) |
600×600×600 |
800×800×800 |
1000×1000×1000 |
1400×1400×1400 |
|
|
Outer box dimensions W * D * H (mm) |
900×1080×1650 |
1100×1480×1750 |
1200×1500×1950 |
1900×1600×2350 |
|
|
Pendulum radius (mm) |
200 |
300 |
400 |
600 |
|
|
Turntable diameter (mm) |
300 |
400 |
500 |
500 |
|
|
Power / power |
220V/3KW |
220V/3KW |
220V/3KW |
220V/4KW |
|
|
Loadable weight (kg) |
20 |
||||
|
Adjustable height (mm) |
100 |
||||
|
qualification |
Sample frame speed |
1 ~3r/min (Adjustable) |
|||
|
Diameter of water spraying hole |
0.4mm |
||||
|
Radial spacing of water spraying hole |
50mm |
||||
|
Water spraying hole flow |
0.07 L/min +5% |
||||
|
Rain water pressure |
80～150Kpa |
||||
|
Range of spray pipe swing Angle |
120 °, 320 ° (near) |
||||
|
Spray mouth clip Angle |
120°（IPX3）、180°（IPX4） |
||||
|
Swing Angle |
120°（IPX3）、320°（IPX4） |
||||
|
Pendulum swing control |
Maximum ± of 180 ° (near) |
||||
|
Water spraying pipe swing speed |
IPX3 15 times / min; IPX4 5 times / min |
||||
|
Preset test time |
1 S ~ 9999 The H59M59S is arbitrarily adjustable |
||||
|
Internal box material |
S US304 stainless steel |
||||
