The stirrer shall incorporate a biased-off switch that is recessed or guarded to prevent accidental operation. It conforms to the IEC60335-2-14 requirement.
Appliance is checked by applying a cylindrical rod whose diameter is 40mm and which has a hemispherical end to touch the switch with a force not exceed 5N.The appliance shall not operated.
Item No. :
HT-I33Minimum Order Quantity (MOQ) :
1 setPayment Method :
T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
100 set/ monthLead Time :
7 DaysConventional packaging :
Aluminum BoxIEC60335-2-14 Stainless Steel Test Finger Probe Diameter 40mm For Hand Held Blender
Product information:
Hand-held blenders shall incorporate a biased-off switch, its actuating member being positioned in a recess or otherwise guarded to prevent accidental operation.
NOTE This requirement does not apply to hand-held food mixers provided with a blender attachment.
Compliance is checked by applying a cylindrical rod, having a diameter of 40 mm and a hemispherical end, to the switch. The appliance shall not operate.
Standard:IEC60335-2-14.
Application:The stirrer shall incorporate a biased-off switch that is recessed or guarded to prevent accidental operation.
Test sample:Hand held blender.
Feature:Appliance is checked by applying a cylindrical rod whose diameter is 40mm and which has a hemispherical end to touch the switch with a force not exceed 5N, the appliance shall not operated.
Technical parameters:
| Model | HT-I33 |
| Probe diameter | Φ40mm |
| Probe material | Stainless steel |
| Handle | Nylon |

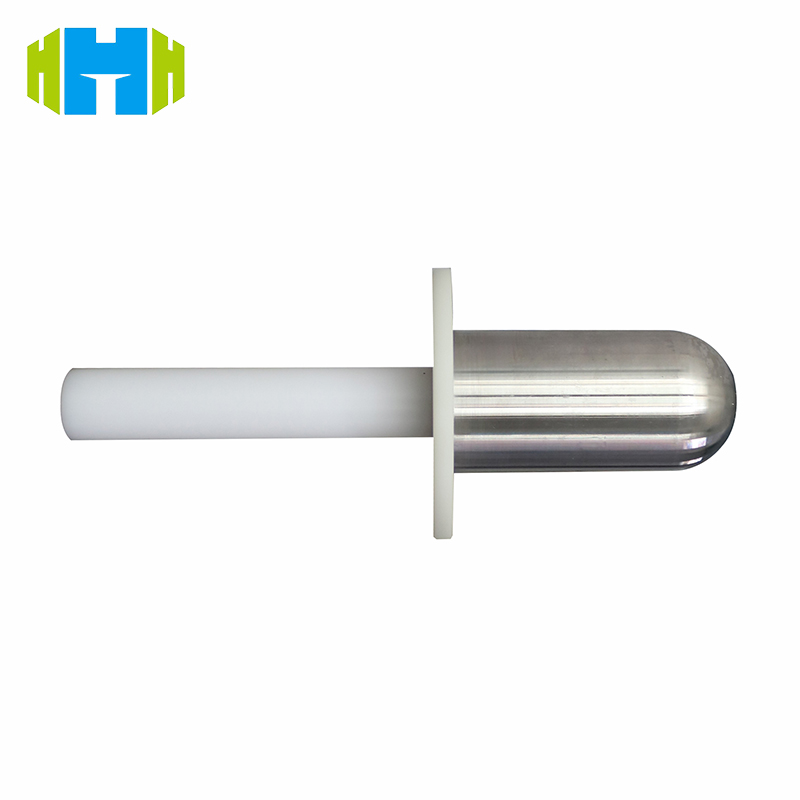

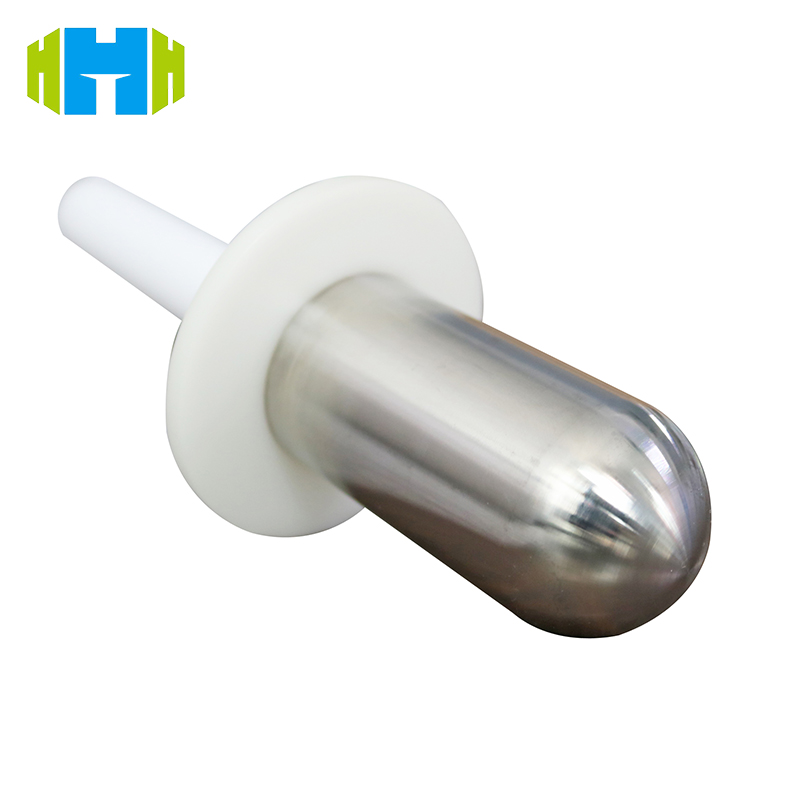

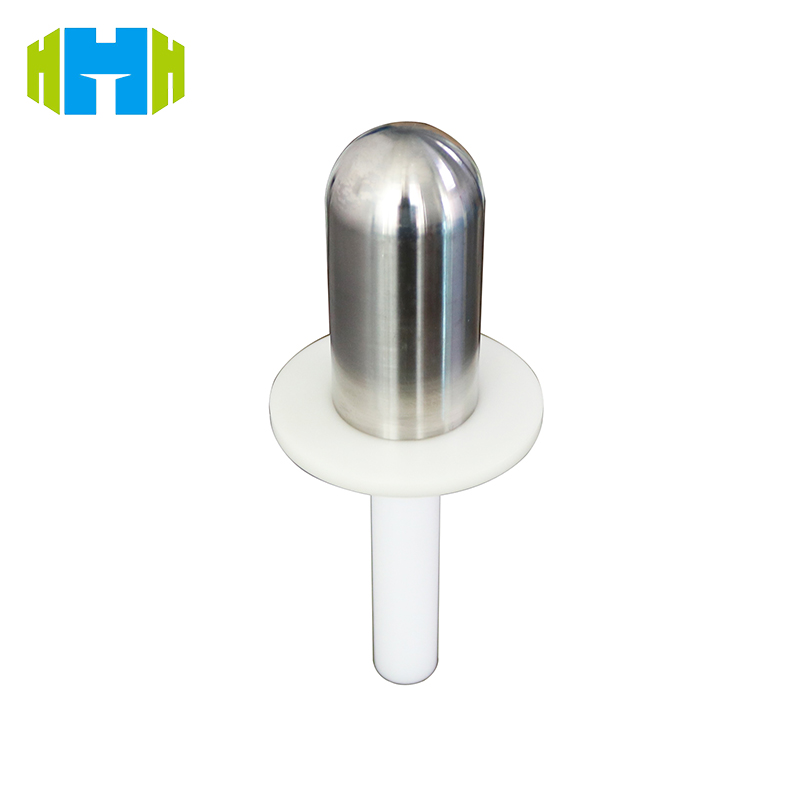

Picture for reference:
