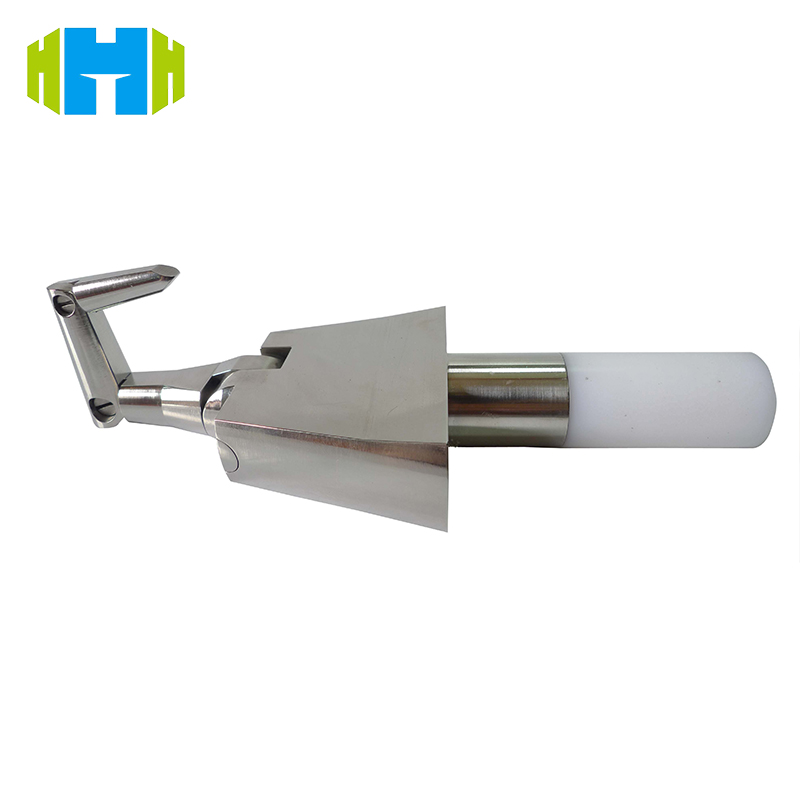

The UL accessibility probe is also called UL articulated probe or jointed test finger probe. It conforms to many standard requirement of UL474 Fig 5.1, UL507 Fig 9.2(PA100A), UL982 Fig 7.1, UL1017 Fig 2, UL1062 Fig1.2, UL1278Fig 8.3, UL1310 Fig 16.2, UL6500 Fig14, UL60065 Fig14 and UL60950 Fig NAF.1.
Item No. :
HT-U01Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C, T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
100 sets / per monthLead Time :
7 daysConventional packaging :
Cartoon BoxUL Standard Articulated Test Finger Probe UL474 Fig 5.1 / UL507
Standard:
UL 2157 Electric Clothes Washing Machines and Extractors clause 6.1, 6.2, 6.3, 15.8.4 and 26.6.1.3, figure 1, figure 2, figure 3, and figure 4.
Application:
It is used for protection against accessibility to current-carrying parts. Test Finger Probe
Parameter:
| Finger length | Figure 1: 97mm |
| Figure 2: 101.6mm | |
| Figure 3: 80mm | |
| Figure 4: 101.6mm |
Consist of:
Figure 1 Articulated probe with web stop
Figure 2 Probe for film-coated wire
Figure 3 IEC accessibility probe with stop plate
Figure 4 Probe for uninsulated current-carrying parts
