HT-I29 flat probe strictly complies with international standards such as GB7000.9 Section 11.2 and IEC60598-2-20 Section 11.2. It is specially designed for light string detection to ensure that metal decorations are not electrified and ensure safety.
Item No. :
HT-I29Minimum Order Quantity (MOQ) :
1 setPayment Method :
T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
100 set/ monthLead Time :
7 DaysConventional packaging :
Aluminum BoxString Light Flat Test Finger Probe IEC60598-2-20 Clause 20.11.2.
Product Introduction

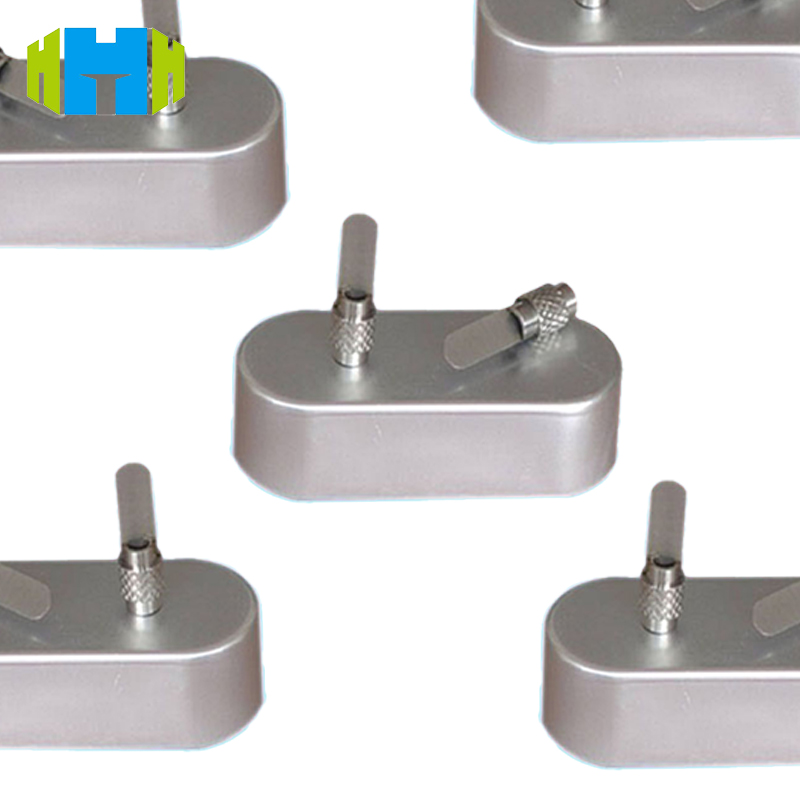

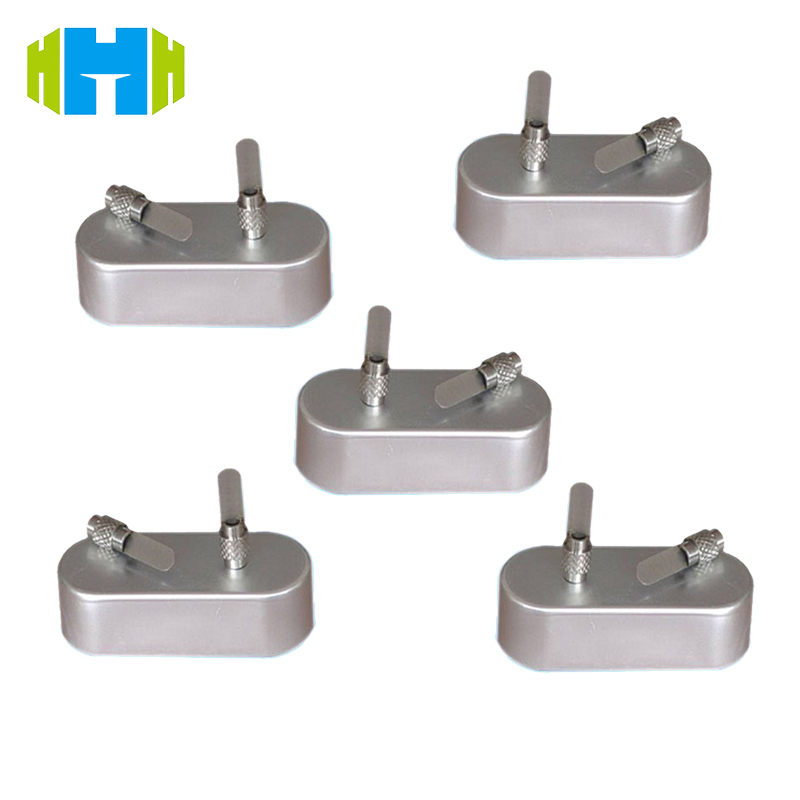

HT-I29 flat probe is a professional light string detection tool, which is used to detect whether the light string will make the metal interwoven fabric or other metal decorative parts electrified. It can be used with a thrust meter to perform a thrust test of less than 0.5N to ensure that the light string meets the safety standards. It is widely used in the production and quality inspection of light strings.
Product Features
Standard compliance: It complies with many international standards such as GB7000.9 Section 11.2 and IEC60598-2-20 Section 11.2, and the detection is authoritative and reliable.
Precise design: The probe thickness is 0.5mm, the width is 8mm, and the end radius is 4mm. It can be used with a thrust meter to achieve precise detection.
Easy to operate: It has a handle for easy handheld operation and improves detection efficiency.
International reference standards
GB7000.9 Section 11.2: stipulates the safety detection requirements for light strings.
IEC60598-2-20 Section 11.2: ensure the safety and standardization of light strings during detection.
Product Usage
Used to detect light strings to ensure that they do not make all metal fabrics or other metal decorative parts electrified, ensuring user safety and avoiding electrical hazards.
Technical parameters
|
Parameters / Model |
HT-I29 |
|
1 |
0.5 |
|
2 |
8 |
|
3 |
R4 |
