As a source manufacturer, our large baffle test finger HT-I02B strictly complies with GB/T16482-2008 Figure 2, IEC61032 Figure 2 and other international standards. It is used to test the basic protection against human contact with dangerous parts and the protection against finger contact, to ensure the safety of electrical products.
Item No. :
HT-I02BMinimum Order Quantity (MOQ) :
1 setPayment Method :
T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
30 sets per monthLead Time :
3 daysConventional packaging :
Aluminum boxIEC60335-2-14 Test finger Probe With Diameter 125mm Circular Stop Face Probe Length 100mm
Product Introduction

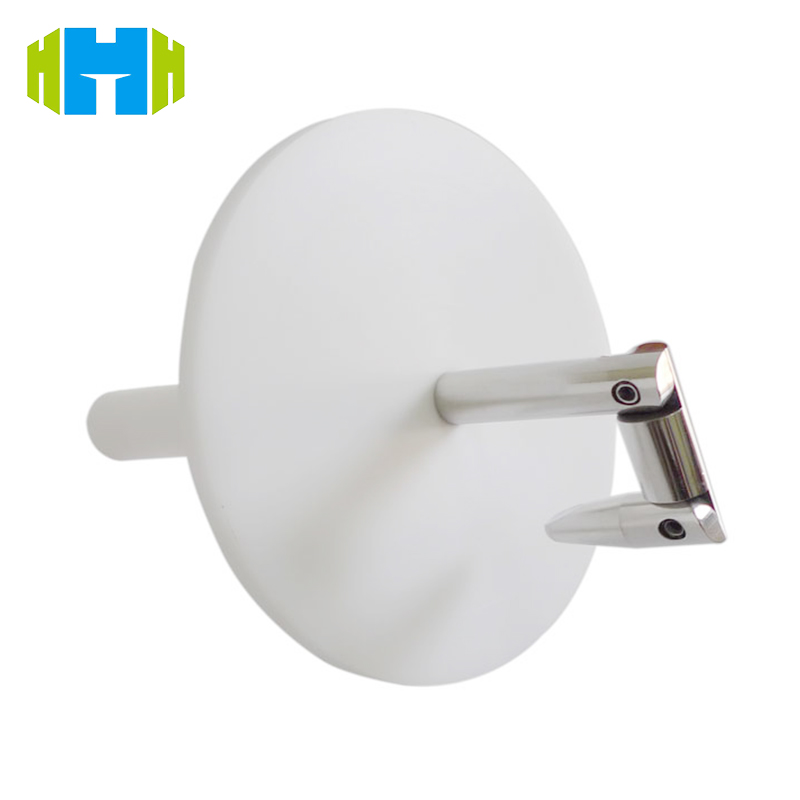

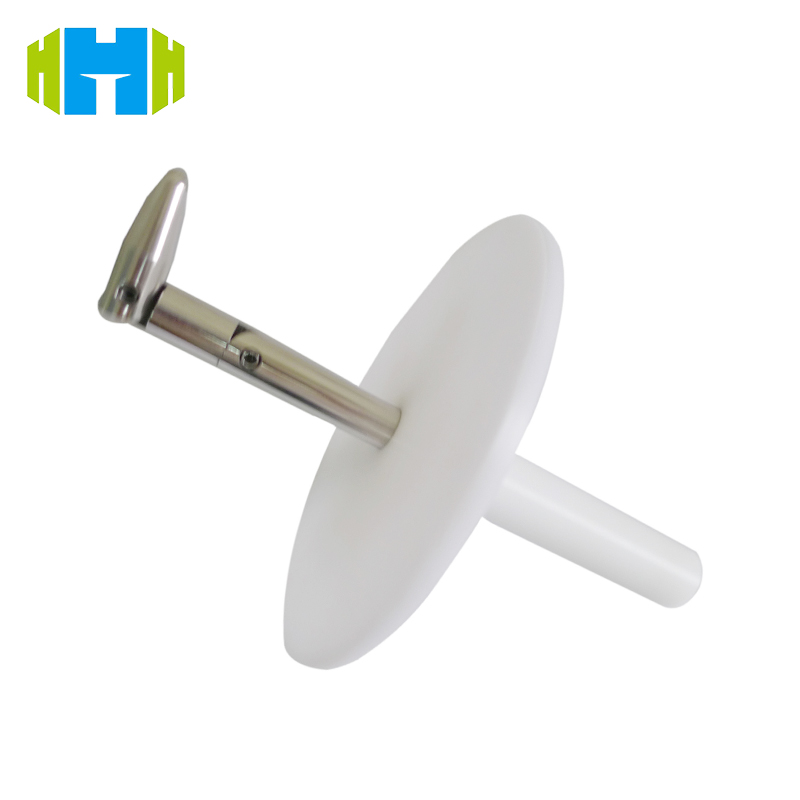

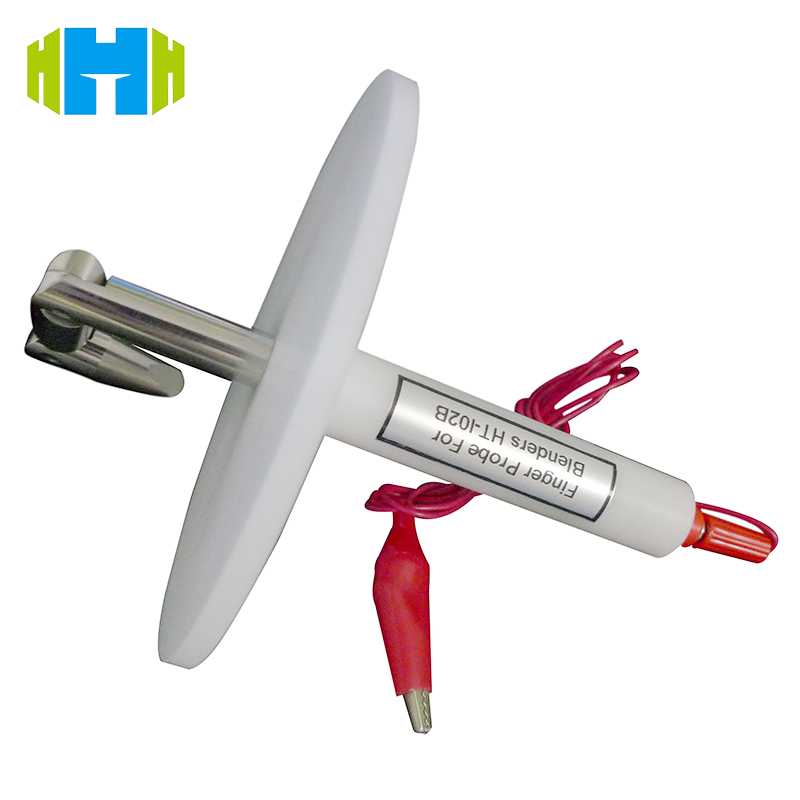

Large baffle test finger HT-I02B is a professional protection testing tool that simulates human fingers. It consists of a finger, middle finger, finger seat, and insulating handle. The two movable joints can be flexibly bent within 90° to accurately test the product's protection performance. It is widely used in the field of electrical product safety testing.
Product Features
Simulation design: Accurately simulate finger structure, flexible bending of movable joints to ensure the authenticity of detection.
Standard compliance: Complies with GB/T16482-2008, IEC61032 and other international standards, authoritative and reliable detection.
Flexible customization: The end of the handle can be customized with plug-in banana plugs, terminal blocks or M6 threaded holes to meet various testing needs.
International reference standards
GB/T16482 - 2008 Figure 2: Technical requirements and test methods for specified test fingers.
IEC61032 Figure 2: Test finger standards for verifying personnel and equipment protection.
GB/T16842: Related protection test standards.
GB4208 IP2, IEC60529 IP1, IEC60065: Protection levels and electrical safety standards.
Product Usage
To inspect the basic protection against human contact with dangerous parts and the protection against finger contact, and ensure the safety of live parts or mechanical parts of electrical product housing.
Test objects
Easily accessible live parts of the housing or mechanical parts, such as live parts of the housing of electrical equipment, moving parts of mechanical devices, etc.
Test items
Test the basic protection performance of the product to prevent human body from touching dangerous parts, as well as the protection performance to prevent finger contact, to ensure the safety of personnel use.
