The test thorn probe is intended to verify the protection against access to glowing heating elements. It complies with IEC61032 figure 16 Test probe 41, IEC60335 standard requirements.
Item No. :
HT-I16Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C, T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
30 sets / per monthLead Time :
3 daysConventional packaging :
Aluminum boxIEC 60335-1 Home Appliances Testing Equipment Test Probe 41 of IEC 61032
Standard of Electrical Appliance Testing Equipment:
IEC 60335-1: 2020 Household and similar electrical appliances – Safety – Part 1: General requirements clause 8.1.3;
IEC 61032 Protection of persons and equipment by enclosures –Probes for verification figure 16
Application of Test Probe 41 of IEC 61032:
Test probe 41 of IEC 61032 is applied with a force not exceeding 1 N to live parts of visibly glowing heating elements, all poles of which can be disconnected by a single switching action. It is also applied to parts supporting such elements, provided that it is obvious from the outside of the appliance, without removing covers and similar parts, that these supporting parts are in contact with the element.
This probe is intended to verify the protection against access to glowing heating elements.
Feature of IEC 61032 Test Probe 41:

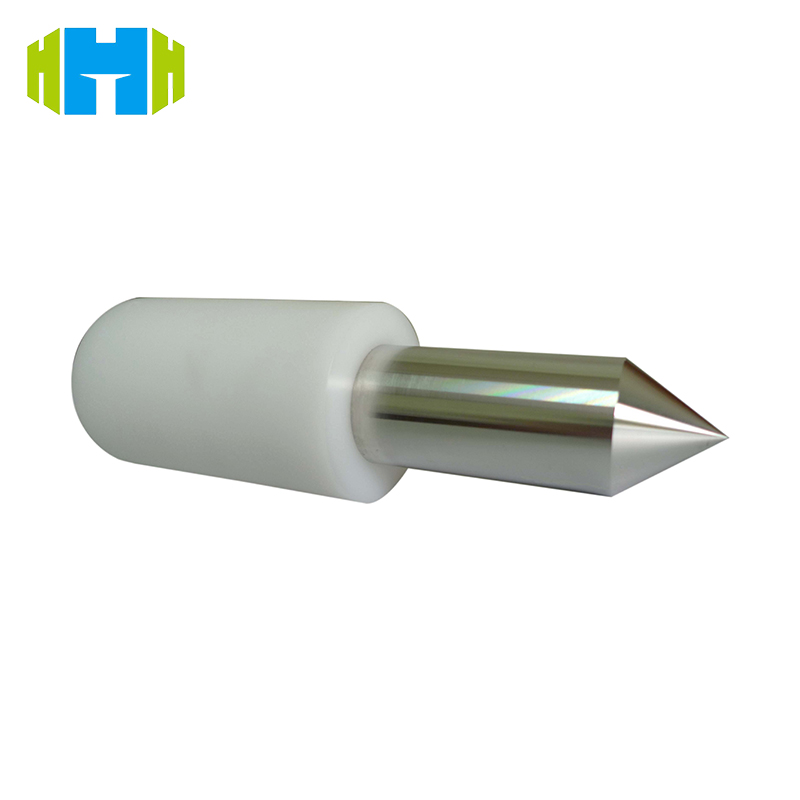

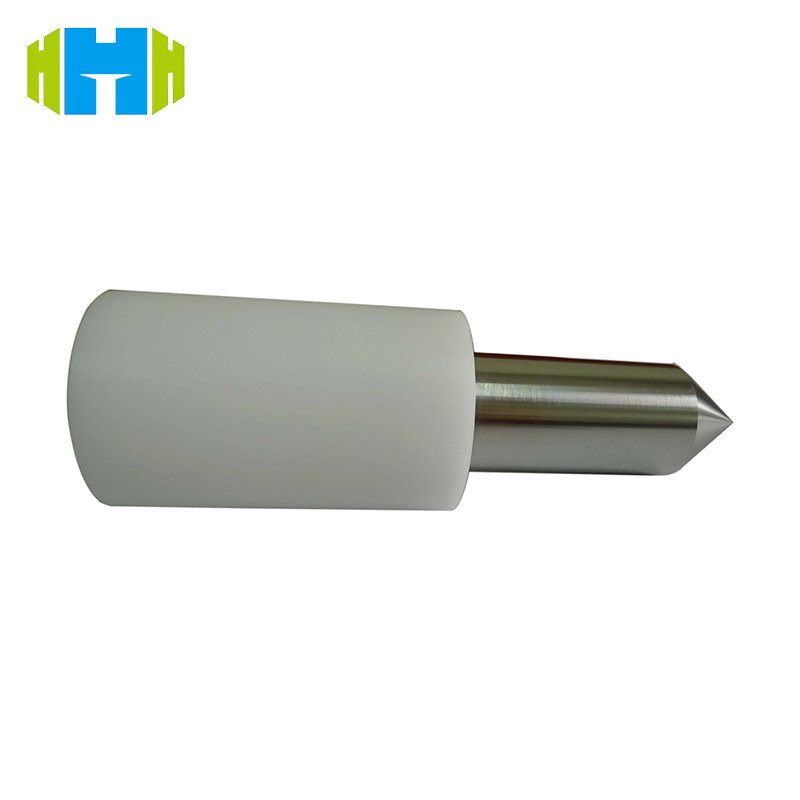

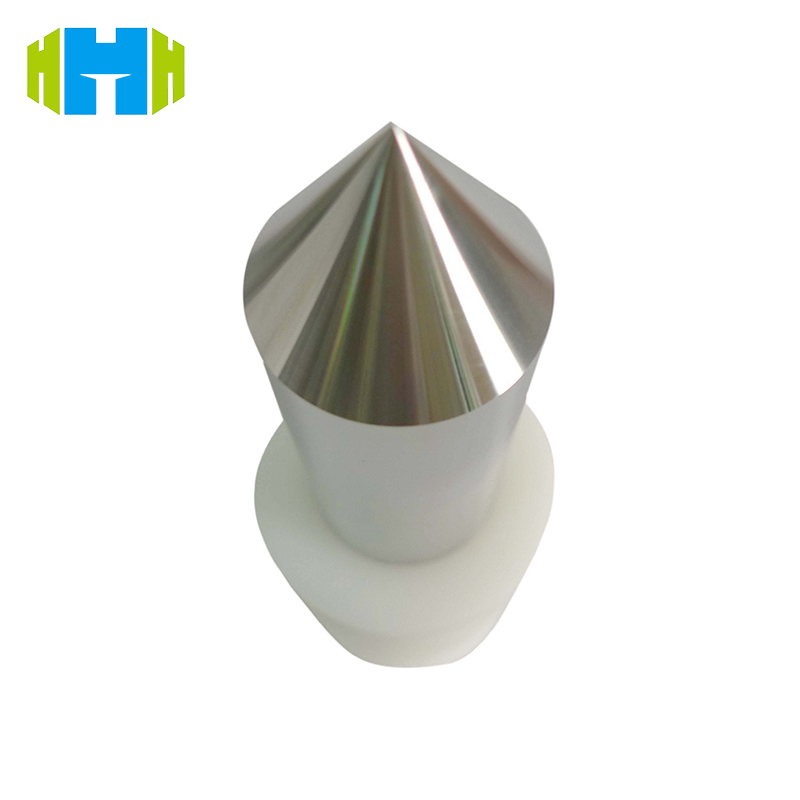

This probe is made of stainless steel with a nylon handle.
Parameter of IEC 61032 Test Probe 41:
| Name/Model | Test Thorn Probe /HT-I16 |
| Metal rod diameter | Ф30±0.05 |
| Cone length | 21.5 0 -0.05 |
| Metal rod length | 80±0.2 |
| Handle diameter | Ф50±0.2 |
| Handle length | 80±1 |
