IEC 1010 / IEC60335-2-25 Test Finger Probe Anti - Electric Shock Testing Machine
Product Introduction
HT-I28 Test Finger Probe strictly complies with many international standards such as IEC 1010, IEC60335-2-25, and is specially designed for electrical safety testing of microwave oven hidden door interlock devices. It is accurate, durable, and customizable, providing solid protection for your product safety.
Product Features
- Direct supply from the source manufacturer: no price difference, direct quality control, high cost performance.
- International standard certification: in line with IEC 1010, IEC60335 - 2 - 25 Clause 22.105 figure 101, EN61010 - 1, UL3101 - 1, UL3111 - 1, CSA1010 - 1 and other standards, applicable worldwide.
- Accurate and reliable parameters: probe diameter Φ3.0₋₀.₁₀mm, length 100±0.2mm, ensuring that every test is accurate.
- Customizable design: equipped with Amphenol connector for anti-electric shock test; M6 threaded hole at the end of the handle (connected to push-pull dynamometer) can be used for housing protection test to meet diverse needs.
- Sturdy and durable structure: selected high-quality materials, durable, to protect your long-term use.
Product Use
- The concealed door interlock device used to operate the microwave oven ensures the safety of the microwave oven.
- When equipped with an Amphenol connector, it can be used for anti-electric shock testing to protect users from the risk of electric shock.
- When the M6 threaded hole at the end of the handle is opened (connected to the push-pull dynamometer), it can be used for housing protection testing to detect the protection ability of the equipment housing to the internal components.

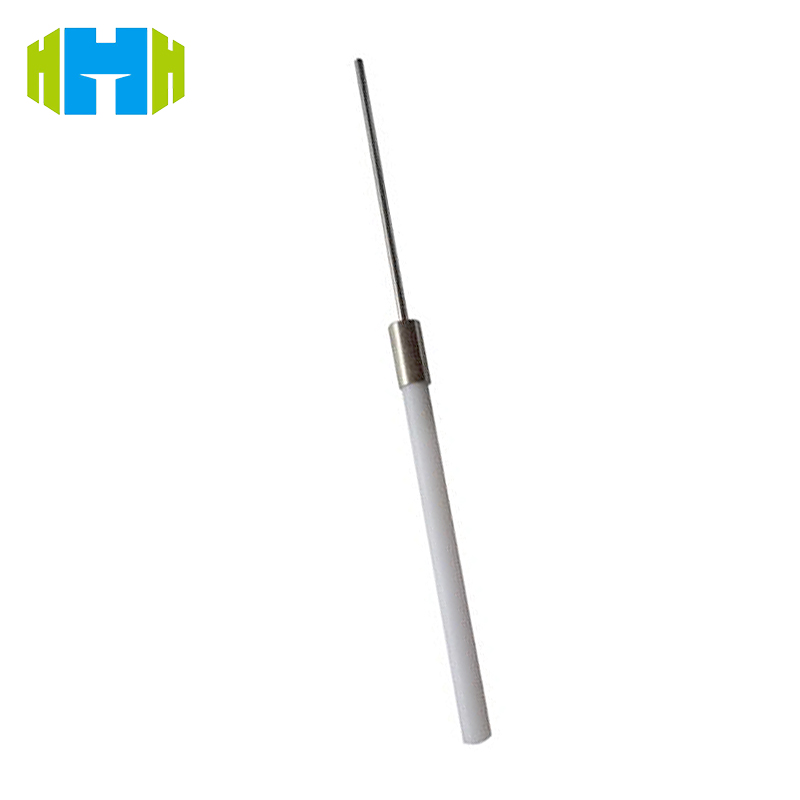

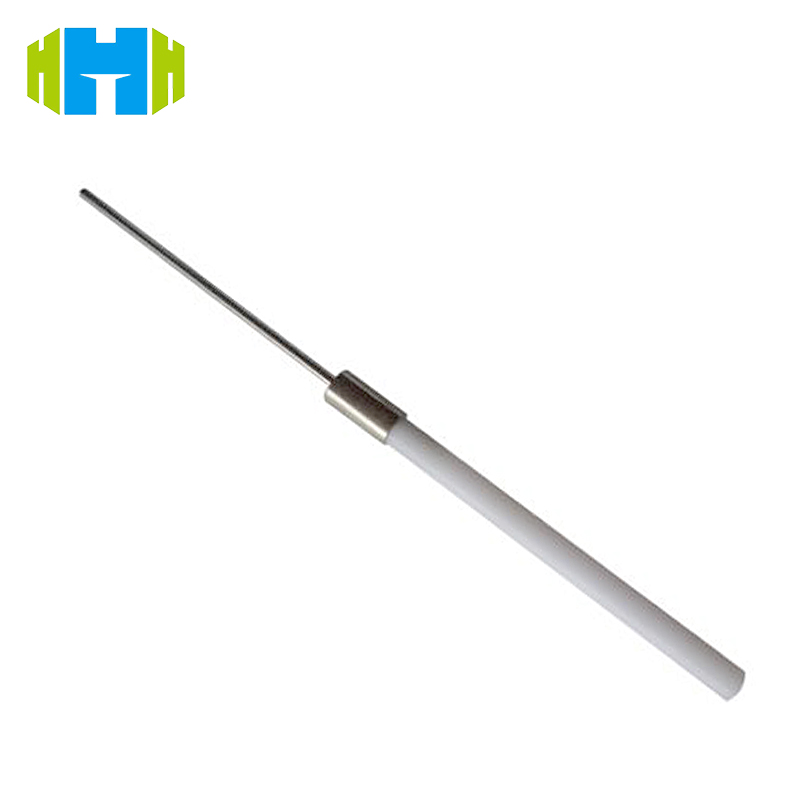

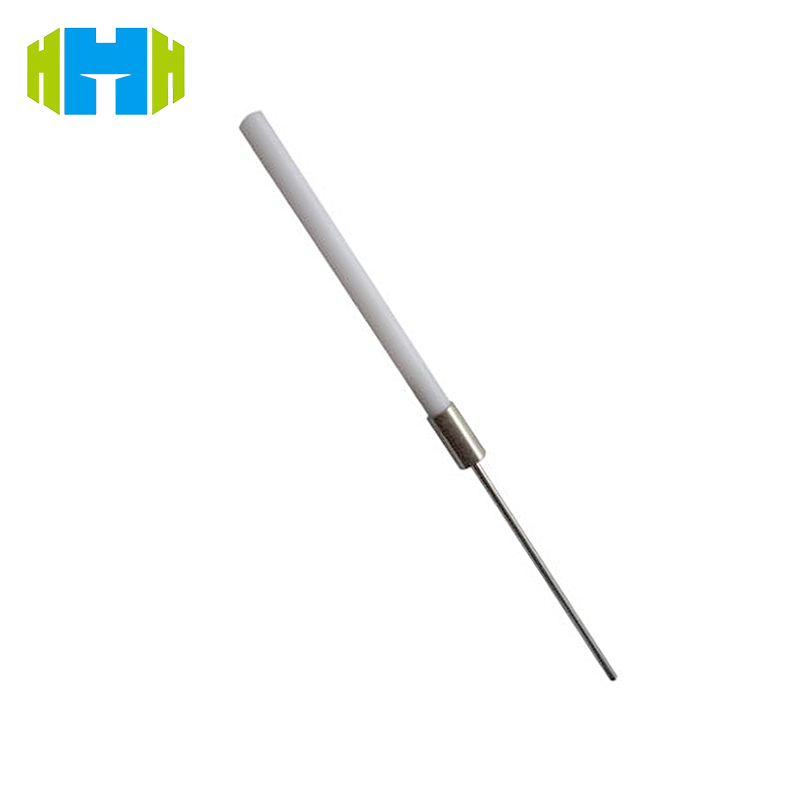

Technical parameters of Test Finger Probe Probe
| Model |
HT-I28 |
| Probe diameter |
φ3 0-0.10 |
| Handle diameter |
Ф10 |
| Probe length |
100±0.2 |
Test object
- Microwave oven: Test the effectiveness of its concealed door interlock device.
- Other electrical equipment that needs to be tested for door interlock device, anti-electric shock protection test, and enclosure protection level test.
Test items
- Door interlock device effectiveness test: Ensure that the interlock device works normally when the microwave oven door is closed to prevent microwave leakage.
- Anti-electric shock protection test: Check whether the equipment has good anti-electric shock measures to protect user safety.
- Enclosure protection level test: Verify the protection ability of the equipment enclosure to the internal live parts to prevent foreign objects from intruding.
