HC9934 creepage distance test card strictly complies with GB2099.1 Article 27, GB4706, GB7000, IEC60884-1, IEC60598, IEC335 and other international standards. It is specially designed to measure the distance between conductive parts of electrical appliances along the surface of insulating materials to ensure electrical safety.
Item No. :
HC9934Minimum Order Quantity (MOQ) :
1 setPayment Method :
T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
100 set/ monthLead Time :
7 DaysConventional packaging :
Aluminum BoxTUV Electrical Appliance Tester CK2 / CK5 Stainless Creepage Distance Test Cards IEC60335
Product Introduction

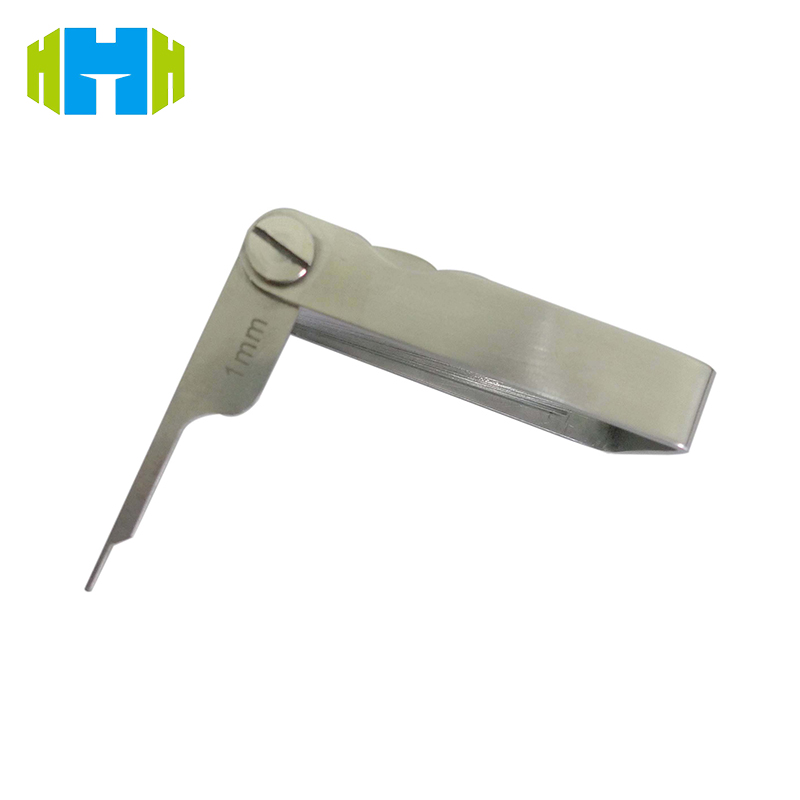

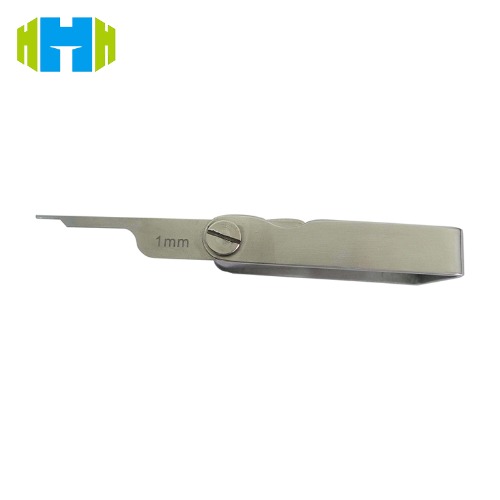

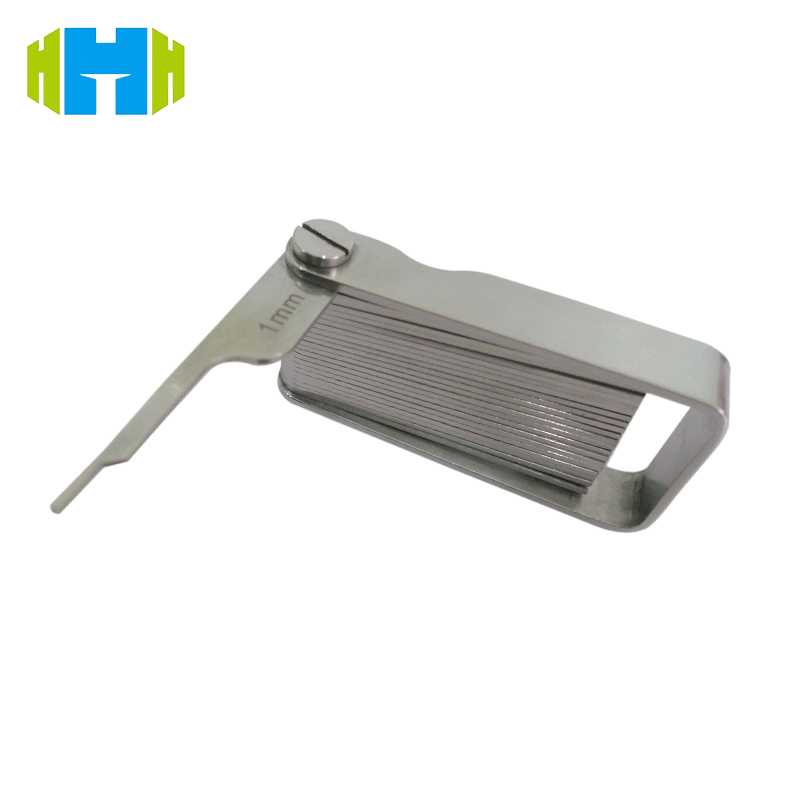

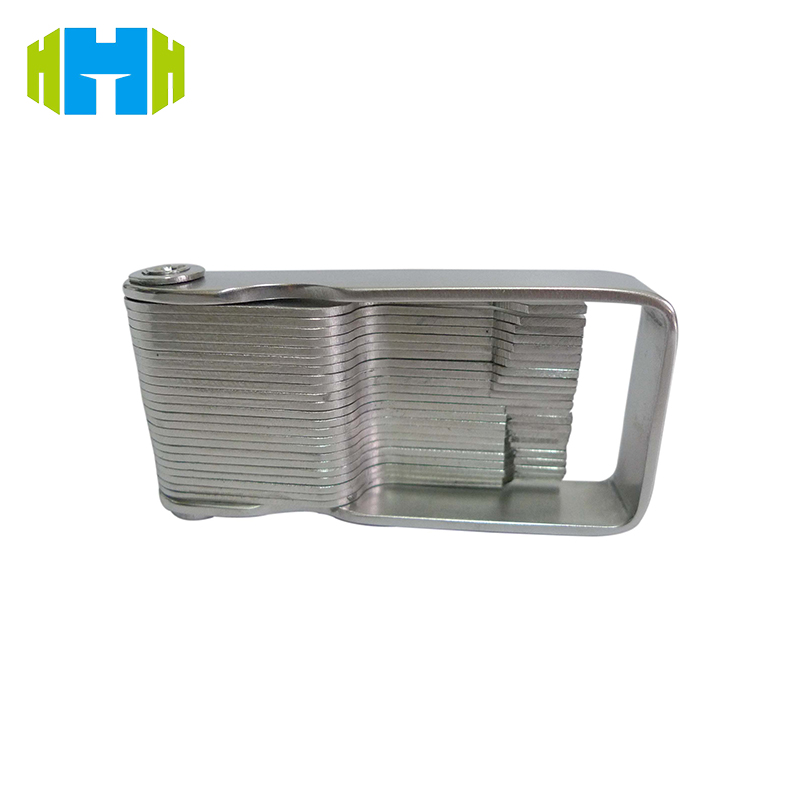

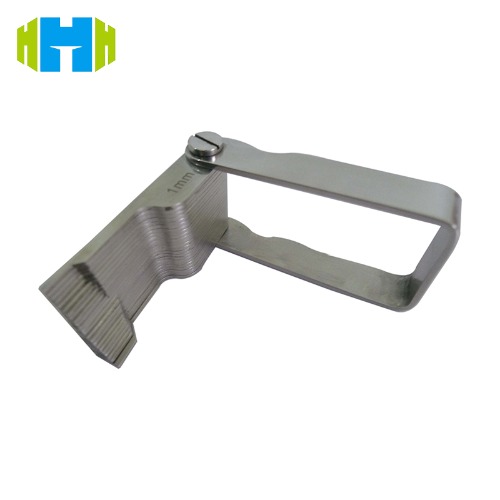

HC9934 creepage distance test card adopts stainless steel claw structure, which is used to verify the creepage distance between conductive parts, accurately measure the distance between two conductive parts, or between a conductive part and the easily accessible surface of the appliance along the surface of the insulating material, and is widely used in electrical production and quality inspection to ensure that the product meets the electrical safety standards.
Product Features
International Reference Standards
Product use
Applicable to measuring the distance between two conductive parts, or between a conductive part and the easily accessible surface of an appliance along the surface of the insulating material, to ensure that the creepage distance of the conductive parts of the appliance meets the safety standards and prevent electrical accidents.
Technical parameters:
|
Model No. |
Size Specification |
|
CK-2 |
1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8 Total 15 creepage distance gauges |
|
CK-5 |
1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm 2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm Total 30 creepage distance gauges |
