Mixed Gas Analyzer 0~100% Sf6 Purity Range ±0.5% FS Accuracy SF6 Testing Equipment

Mixed gas analyzer - 0~100% SF6 purity range ±0.5% FS accuracy SF6 testing equipment

Product Introduction

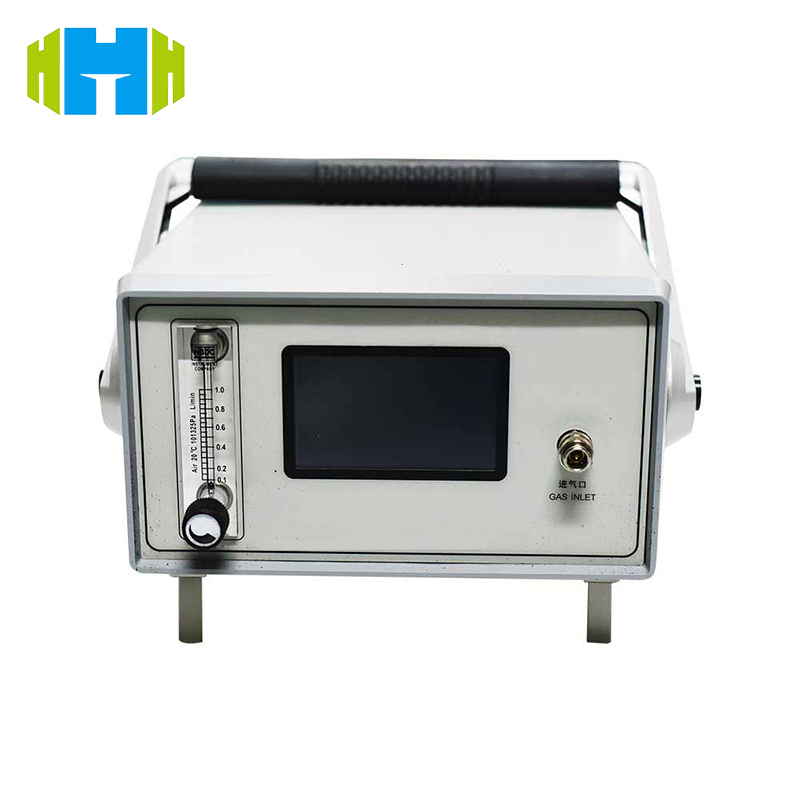

SF6T-001 mixed gas analyzer is a professional SF6 testing equipment, which is used to accurately analyze the purity and oxygen content of SF6/N2 mixed gas. The equipment can provide measurement results quickly and accurately through advanced sensor technology. It is widely used in power, electrical and other industries, providing strong support for the quality control and safety monitoring of SF6 gas.

Product Features

1. High-precision sensing: SF6 gas purity adopts German Smart-GAS NDIR principle sensor, and oxygen test adopts British CITY electrochemical sensor to ensure accurate measurement.
2. Intelligent calibration: It has the functions of automatic zero point calibration, full curve tracking correction and slope automatic calibration to ensure accurate and reliable measurement data.
3. Fast measurement: The protective gas chamber adopts the latest technology, with fast measurement speed and response speed, and can obtain test results in time.
4. Convenient operation: Simple operation, easy to carry, suitable for on-site detection.
5. Stable and reliable: It has anti-pollution and anti-interference characteristics, good repeatability, high sensitivity and strong stability.
6. Temperature compensation: It has built-in temperature compensation function to adapt to accurate measurement under different ambient temperatures.
7. Flexible power supply: AC and DC dual-use, built-in rechargeable lithium battery, automatic switching, with overcharge and over-discharge protection function.
8. Large screen display: large color LCD screen display, real-time display of various parameters, easy to read data.
9. Probe protection: advanced probe protection function, extending the service life of the probe.
10. Safety protection: stainless steel sintered filter mesh probe protection, to ensure the safety of equipment and operators.

Product use

Mainly used to measure the purity and oxygen content of SF6 gas in SF6/N2 mixed gas, and detect gas flow and other parameters. Suitable for gas quality detection of SF6 gas insulation equipment (such as circuit breakers, transformers, etc.) in the power industry to ensure safe and stable operation of the equipment; can also be used for SF6 gas quality control in electrical equipment manufacturing, maintenance and other links.

Test object

The main test object is SF6/N2 mixed gas, which is widely used in SF6 gas used in power equipment, such as SF6 circuit breakers, SF6 transformers and other equipment.

Test items

• SF6 gas purity detection: Accurately measure the purity percentage of SF6 gas in the mixed gas, with a detection accuracy of ±0.5% FS.
• Oxygen content detection: Measure the oxygen content in the mixed gas, with a measurement range of 0~30% and an accuracy of ±0.5%.
• Gas flow detection: Detect the flow of gas, with a measurement range of 400~800mL/min.

Technical Parameters
