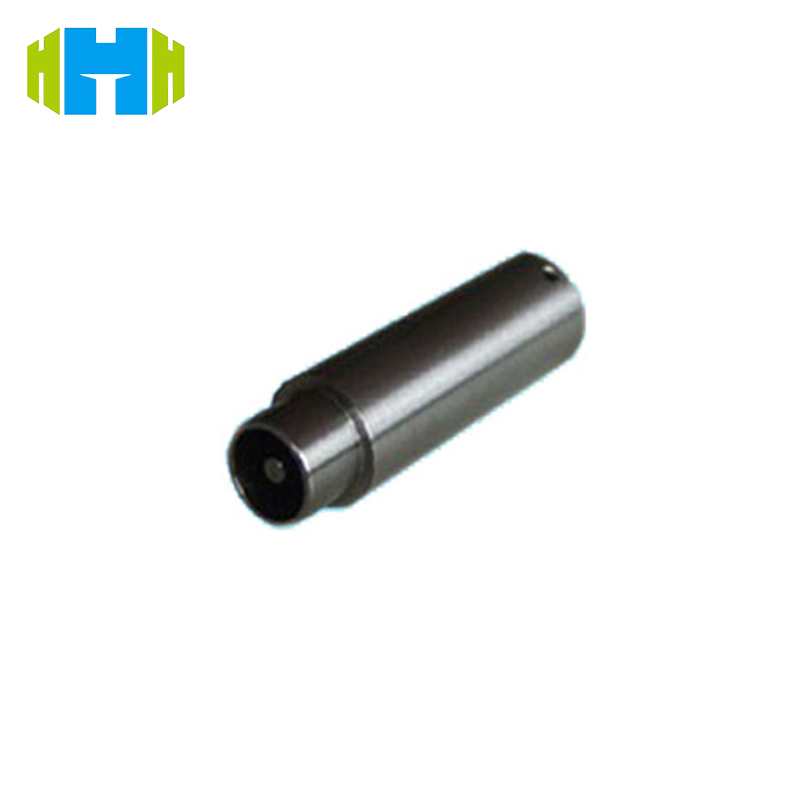

This test plug conforms to IEC60065 Figure 8 standard requirement. It is used to test the antenna coaxial socket which is installed on the device and equipped with parts or components which isolate the hazardous live parts and accessible parts. Its structure should be able to withstand the expected mechanical stress that might encounter during the use process. It is made entirely of stainless steel. All parts are machined with precision.
Item No. :
HT-I19Minimum Order Quantity (MOQ) :
1 setPayment Method :
T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
100 set/ monthLead Time :
7 DaysConventional packaging :
Aluminum BoxIEC60065:2014 clause 12.5 Figure 9 Test Plug For Mechanical Tests On Antenna Coaxial Sockets
Standard:
IEC60065:2014 clause 12.5 Figure 9.
Application:
It is used to test the antenna coaxial socket which is installed on the device and equipped with parts or components which isolate the hazardous live parts and accessible parts. Its structure should be able to withstand the expected mechanical stress that might encounter during the use process.
Test sample:
Audio, video and similar electronic apparatus.
Feature:
It is made entirely of stainless steel. All parts are machined with precision.
Parameters:

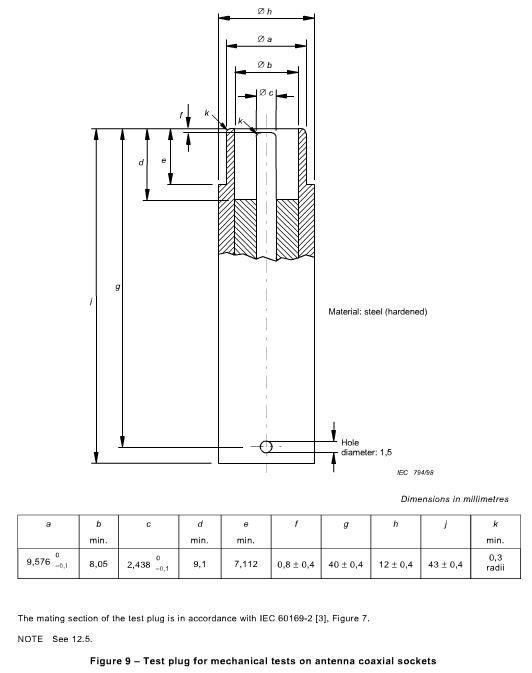

| Model | HT-I19 |
| Diameter of the end of a | 9.576 0 -0.1 |
| b | 8.05 Minimum |
| c | 2.438 0 -0.1 |
| d | 9.1 Minimum |
| e | 7.112 Minimum |
| f | 0.8±0.4 |
| g | 40±0.4 |
| h | 12±0.4 |
| j | 43±0.4 |
| k | R0.3 |
| Aperture | Ф1.5 |

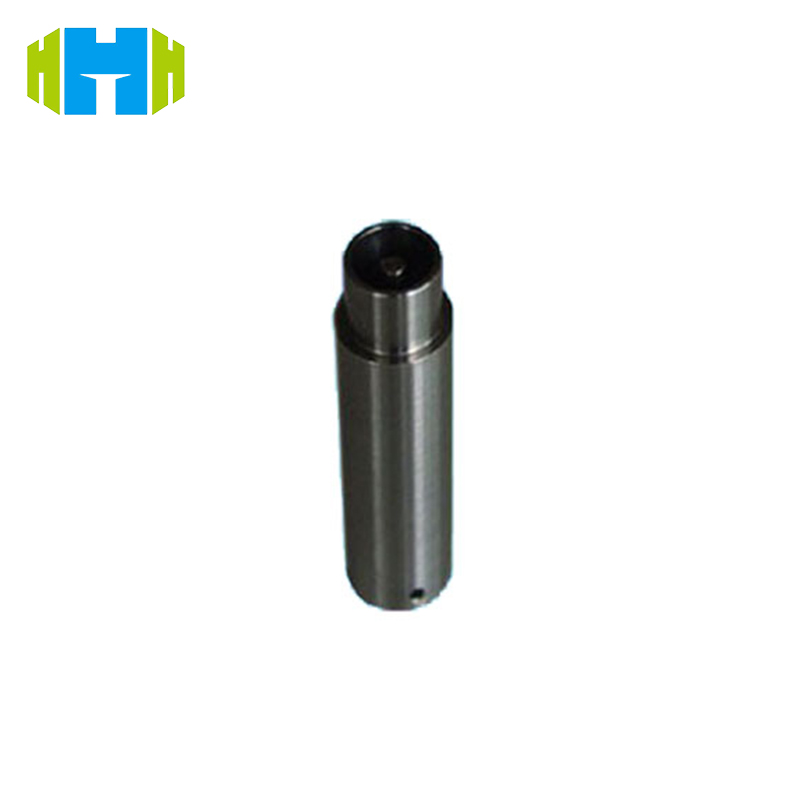

Picture for reference:
