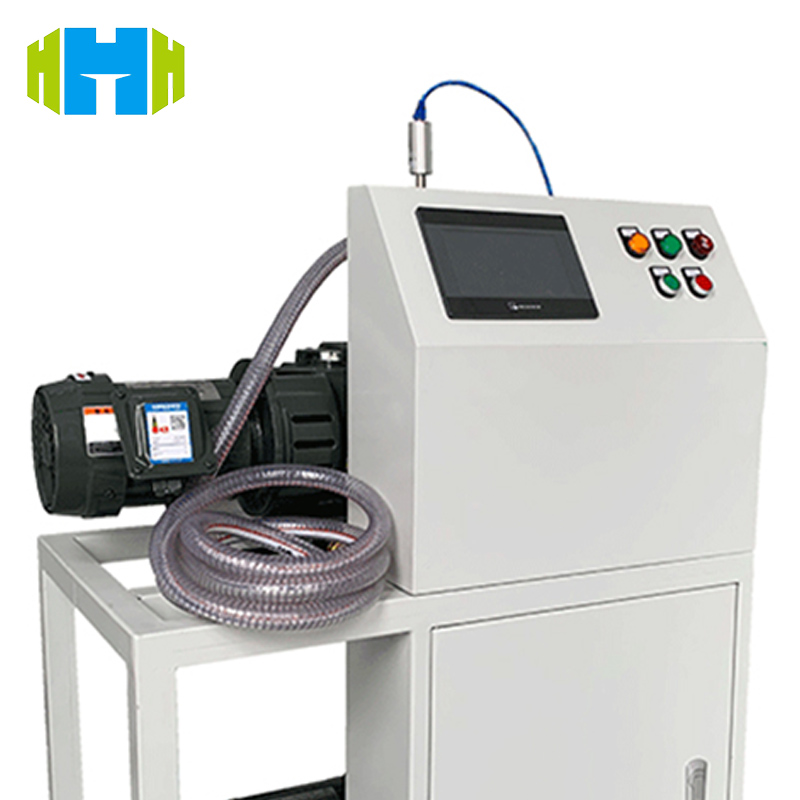

Iec 60204 Cnc Vacuum Unit Pumping Rate 30l/S Plc Display Support Remote Control

Iec 60204 Cnc Vacuum Unit Pumping Rate 30l/S Plc Display Support Remote Control

Product Features

• Dual pumps work together efficiently: Roots pump (30L/S) + rotary vane pump (8/12L/S front stage) combination, wide pumping speed coverage, ultimate vacuum up to 1×10⁻²Pa.
• CNC precision control: PLC + touch screen to achieve parameter customization, real-time status feedback, clear alarm logic.
• Safety redundancy design: triple protection for phase loss, reversal, and overload, fault self-diagnosis + automatic shutdown to reduce equipment loss.
• Adaptive start and stop: automatic start when connected to the workpiece, automatic standby when disconnected, simplifying the operation process.
• Remote production line integration: standard communication interface, support remote control/data collection, and adapt to Industry 4.0.
• Precise and stable parameters: motor speed is constant at 1400r/min, fuel consumption/power is accurately controllable, and long-term operation consistency is guaranteed.

International reference standards

• ISO 21360-1:2017 (Vacuum technology - Pump performance test)

Pumping rate test: Standardize the measurement method of 30L/S pumping speed to ensure that the equipment performance meets the international measurement accuracy.

Ultimate vacuum verification: Clarify the test process and environmental requirements for 1×10⁻²Pa vacuum degree.

• GB/T 3216-2016 (Rotary power pump acceptance test)

Motor power/speed measurement: Specify the test methods of 1.5KW (single pump), 3.0KW (whole machine) power and 1400r/min speed to ensure accurate energy consumption and power output.

Connection method specification: Z G1/4 interface sealing and pressure resistance test standards.

• IEC 60204-1:2016 (Industrial machinery electrical safety)

Electrical protection design: Require circuit design specifications for phase loss and overload protection, and logical implementation of motor reversal detection.

Remote control security: electromagnetic compatibility (EMC) and data encryption requirements of communication interfaces.

Product use

• Electronic manufacturing: vacuum treatment before chip packaging and sensor vacuum coating to ensure the airtightness of the package.
• Semiconductor industry: vacuum environment construction in wafer cleaning and etching to avoid impurity contamination.
• Material processing: vacuum system core unit for vacuum heat treatment and surface coating to improve process stability.
• Laboratory: vacuum generation device for vacuum drying and degassing test to support precise testing of scientific research.
• Packaging field: vacuum generation system of vacuum packaging machine, suitable for food and electronic component packaging production lines.

Technical Parameters
