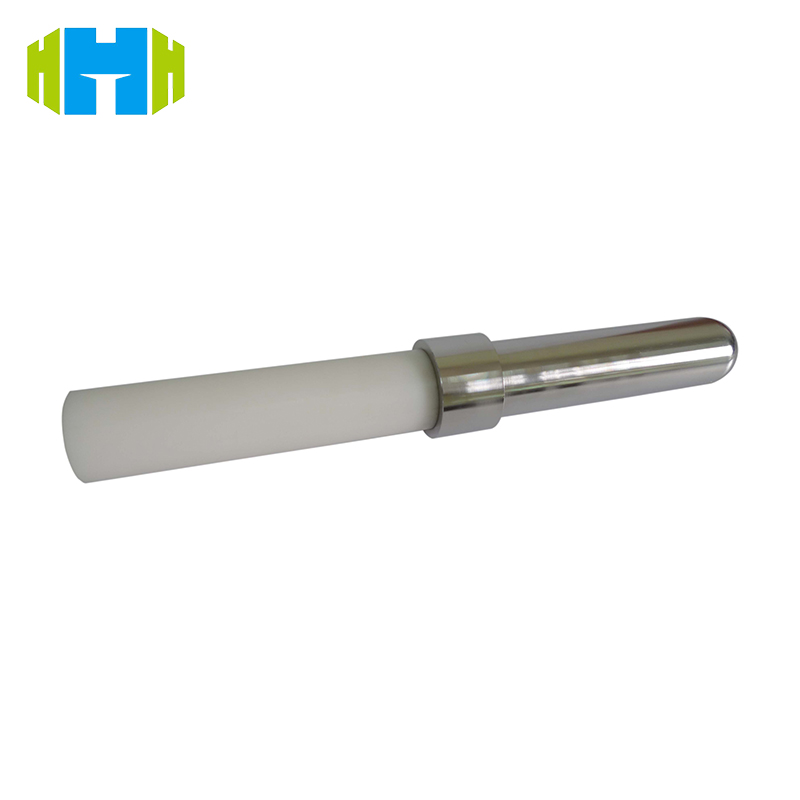

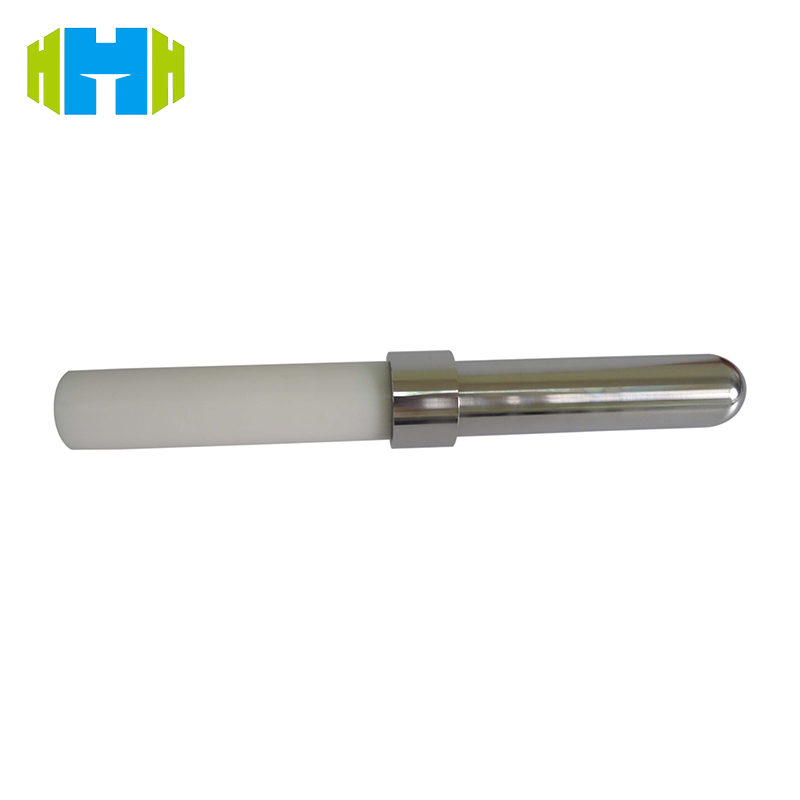

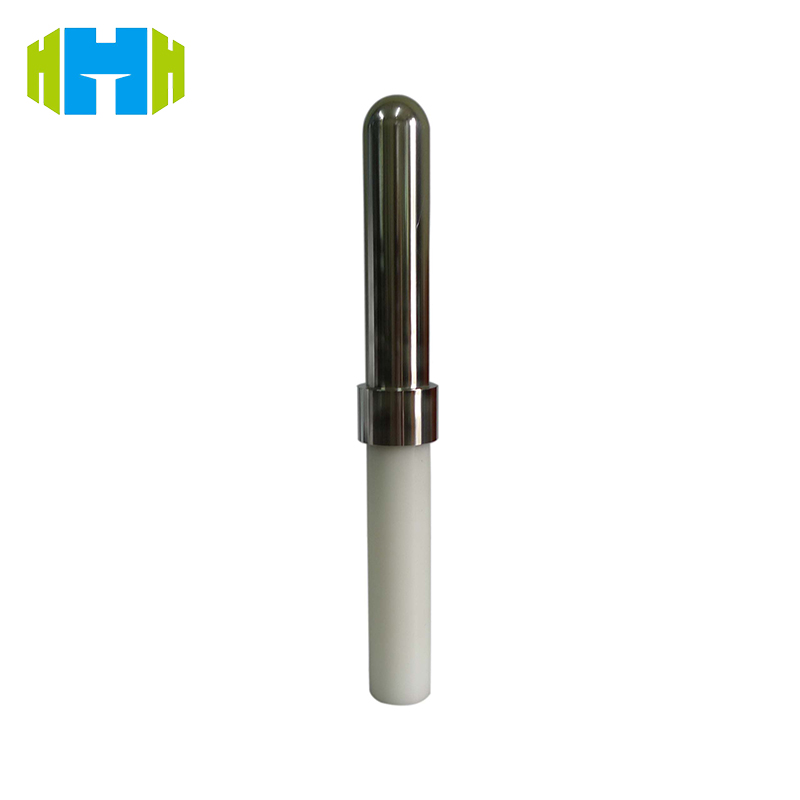

HT-U09 fan blade probe strictly complies with UL507 Figure 8.2 (S2140A) standard and is specially designed for protection testing of fan impellers and internal moving parts. It is carefully crafted by the source manufacturer to ensure fan safety.
Item No. :
HT-U09Minimum Order Quantity (MOQ) :
1 setPayment Method :
T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
100 set/ monthLead Time :
7 DaysConventional packaging :
Aluminum BoxFan Blade Protection Test Probe Meets The Standard: UL507 FIG8.2 (S2140A) Test Finger Probe
Product Introduction
In modern life, fans are indispensable electrical appliances, and their safety is of vital importance. The HT-U09 fan blade probe, like a silent guard, focuses on fan safety testing. It is designed according to the authoritative UL507 standard, and every test carries a commitment to safety. When you enjoy the coolness brought by the fan, HT-U09 is checking your safety, ensuring that the fan impeller and internal moving parts are well protected, so that every operation is worry-free. Choosing HT-U09 is choosing the pursuit of quality and safety, adding a reliable guarantee to your life.
Product Features
Authoritative standard certification: strictly in accordance with UL507 Figure 8.2 (S2140A) standards, the test results are authoritative and reliable, providing a professional basis for fan safety.
High-quality structural design: adopts nylon handle + hard steel probe structure, the handle is comfortable to hold, the probe is sturdy and durable, ensuring long-term stability and accuracy.
Precise detection: specially used for fan air inlet detection, accurately judge the protection of fan impellers and internal moving parts, and do not miss any safety hazards.
Advantages of source manufacturers: Purchase directly from source manufacturers, with reasonable prices, and enjoy timely and professional technical support and after-sales service without worries.
International reference standard

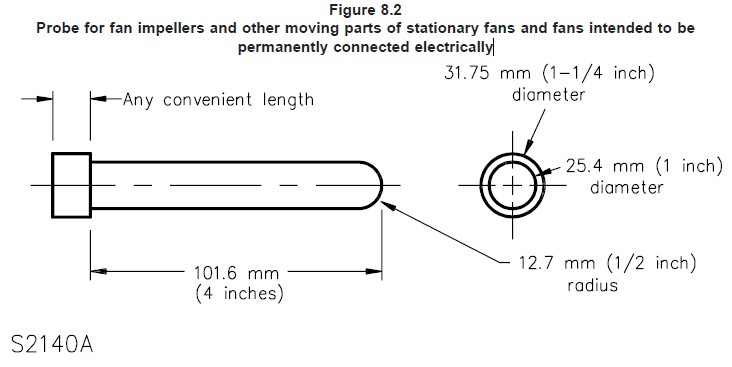

UL507 Figure 8.2 (S2140A): This standard clearly stipulates the protection test of fan impellers and other moving parts. HT-U09 strictly complies with this standard to ensure the authority and applicability of testing worldwide.
Product use
Used for protection test of fan impellers and internal moving parts to ensure that these parts will not cause harm to users during the operation of the fan, thereby ensuring the personal safety of users.
Technical Parameters
| Parameter Name | Parameter Value |
| Model | HT - U09 |
| Conform to standard | UL507 Figure 8.2 (S2140A) |
| Application | Protection test for fan impellers and internal moving parts |
| Test object | Fan air inlet |
| Handle material | Nylon |
| Probe material | Hard steel |
| Probe length | Any convenient length (in line with the standard) |
| Probe related diameter | 31.75mm (1 - 1/4 inch) |
| Diameter of another part | 25.4mm (1 inch) |
| End radius | 12.7mm (1/2 inch) |
| Environmental temperature adaptation range | -10℃ - 40℃ |
| Environmental humidity adaptation range | ≤75%RH |
| Storage temperature | -20℃ - 50℃ |
| Weight | Lightweight and easy to carry |
Test object
Fan air inlet, through testing it to determine the protection performance of the fan impeller and internal moving parts.
Test items
Test whether the protection of the impeller and internal moving parts at the fan air inlet is in place to ensure that these moving parts will not cause accidental contact damage to the user during normal use, ensuring the safety of fan use.
