This advanced system integrates high-precision servo-drive technology, sophisticated sensing capabilities, and a comprehensive enclosed safety system, primarily designed for determining the flexural strength (Modulus of Rupture, MOR) of various glass types, including flat glass, tempered glass, laminated glass, and specialized optoelectronic glass.
Item No. :
HJAPET0008Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C,T/T,PayPalPrice :
NegotiatableProduct Origin :
Türkiye,ChinaSupply Ability :
1 set per monthLead Time :
30 Working DaysConventional packaging :
PlywoodThis machine is widely applied in quality inspection and research & development for architectural glass, cover glass for automotive and mobile devices, photovoltaic glass, and display screens. Its design rigorously adheres to the following international authoritative standards:
EN 1288-3: Glass in building — Determination of the flexural strength of glass.
ASTM C158: Standard Test Methods for Strength of Glass by Flexure (Determination of Modulus of Rupture).
ISO 1288-3: Glass in building — Determination of the flexural strength of glass.
| Category | Key Parameter | Technical Specification / Indicator | Compliance Standard / Remark |
| Load System | Max. Test Force | 20 kN (2,000 kgf) | Sufficient for thin to thick tempered glass fracture tests |
| Load Measurement Accuracy | Class 0.5 (within ±0.5% of indicated value) | Superior to typical 1% accuracy requirements in standards | |
| Load Resolution | 1/300,000 FS (Full Scale, without sub-ranges) | Ensures capture of initial crack force values | |
| Drive System | Crosshead Speed Range | 0.001 - 500 mm/min | Supports constant stress rate loading as per EN 1288-3 |
| Speed Accuracy | ±0.1% of set value | Guarantees linear loading rate, preventing stress shocks | |
| Effective Test Stroke | 800 mm (excluding fixtures) | Accommodates significant deflection of larger samples | |
| Control & Data Acq. | Data Sampling Rate | 1000 Hz (1ms per sample) | Critical Parameter: Accurately records peak force at fracture |
| Control Modes | Stress Control, Strain Control, Displacement Control | Three-loop control for complex loading profiles | |
| Displacement Resolution | 0.001 mm (1 μm) | Essential for precise calculation of flexural modulus and deflection | |

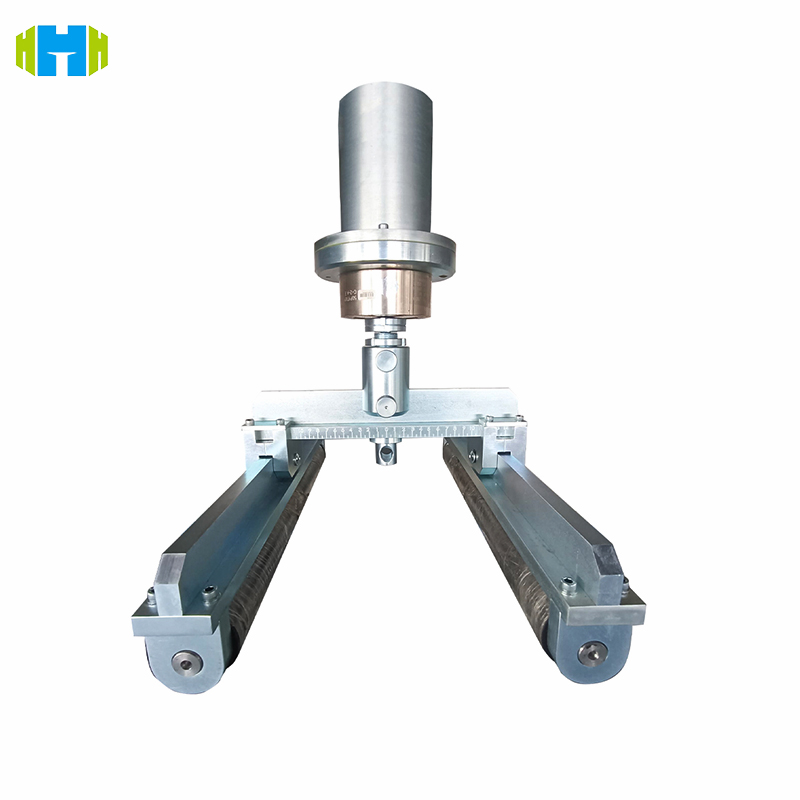

| Flexural Fixture | Support Span (L) | Adjustable: 200 mm - 1100 mm | Conforms to various standard specimen dimensions |
| (Core Component) | Roller Diameter (d) | Ø 25 mm / Ø 50 mm (Optional) | Proportional to glass thickness, preventing localized stress concentration |
| Rubber Pad Hardness | Shore A 40 ± 5 | Conforms to EN 1288-3, for uniform load distribution | |
| Safety & Environ. | Safety Shielding | Fully enclosed impact-resistant transparent polycarbonate shield | Protects against high-energy glass fragment dispersion |
| Debris Management | Funnel-shaped stainless steel collection system + mobile cart | Facilitates 5S safety and cleanliness post-test | |
| Power Supply | AC 380V ±10%, 50/60Hz, 3-Phase, 3kW | Standard industrial power requirement | |
| Operating Temp. | 10°C - 35°C | Standard laboratory environment | |
| Humidity | 20% - 80% RH (non-condensing) | Standard laboratory environment | |
| Software Features | Auto Calculation Items | Flexural Strength ($f_b$), Modulus of Rupture (MOR), Elastic Modulus | Automated report generation with key mechanical properties |
| Data Export | Raw data export in Excel, PDF, CSV formats | Facilitates advanced statistical analysis (e.g., Weibull distribution) |
