Product Brief Description

As a source manufacturer, we are proud to launch the automotive spring torque tester HJAPET0002, which is a high-precision device specially designed for automotive parts performance testing. It is like a rigorous quality guard, accurately detecting the torque performance of automotive springs, providing solid support for quality control in the automotive industry, and helping you to easily cope with various challenges in the field of automotive parts testing.

Product Introduction

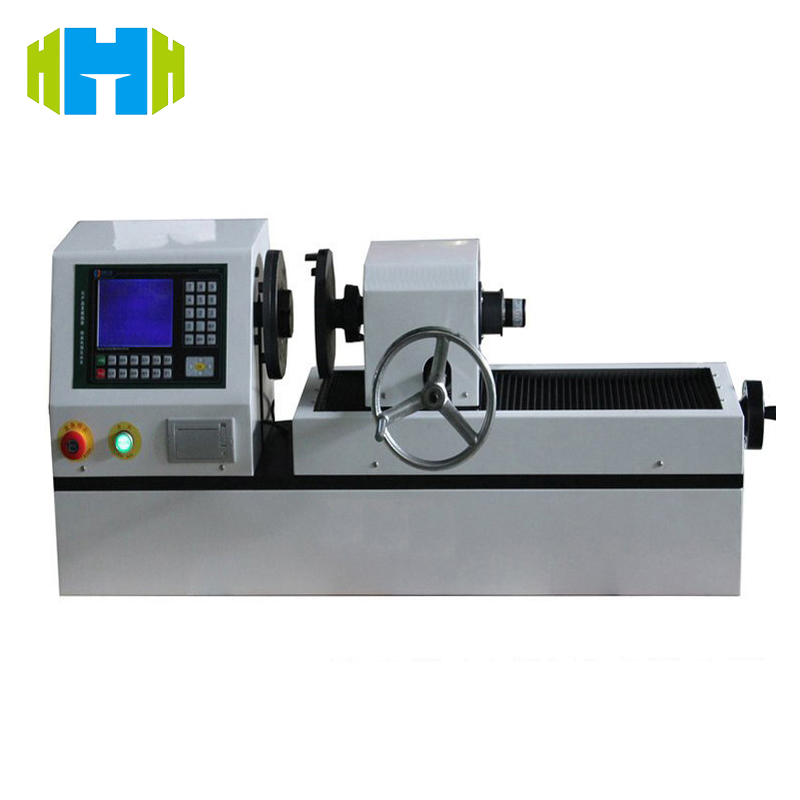

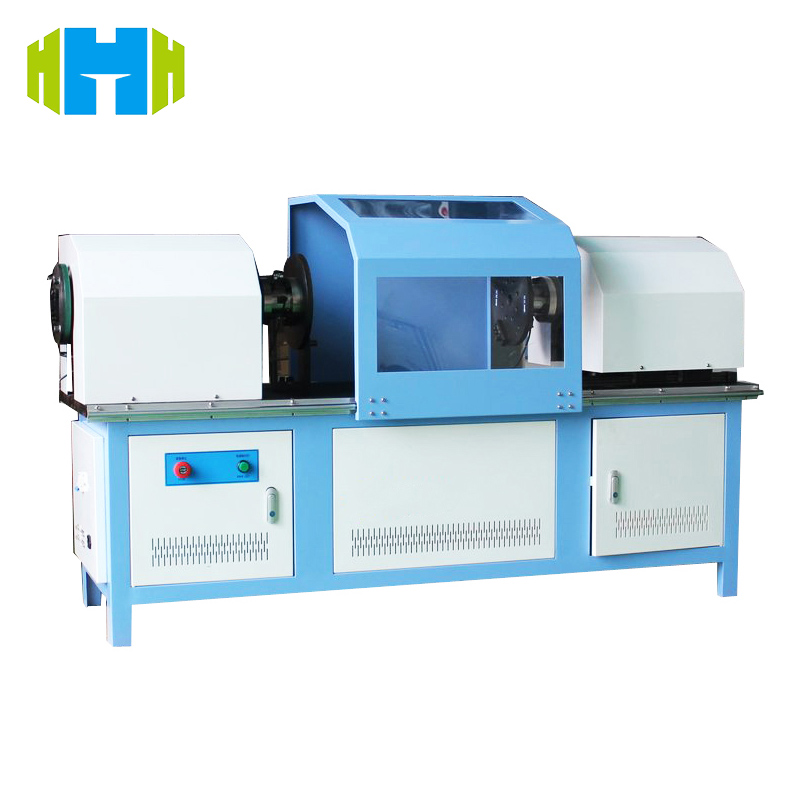

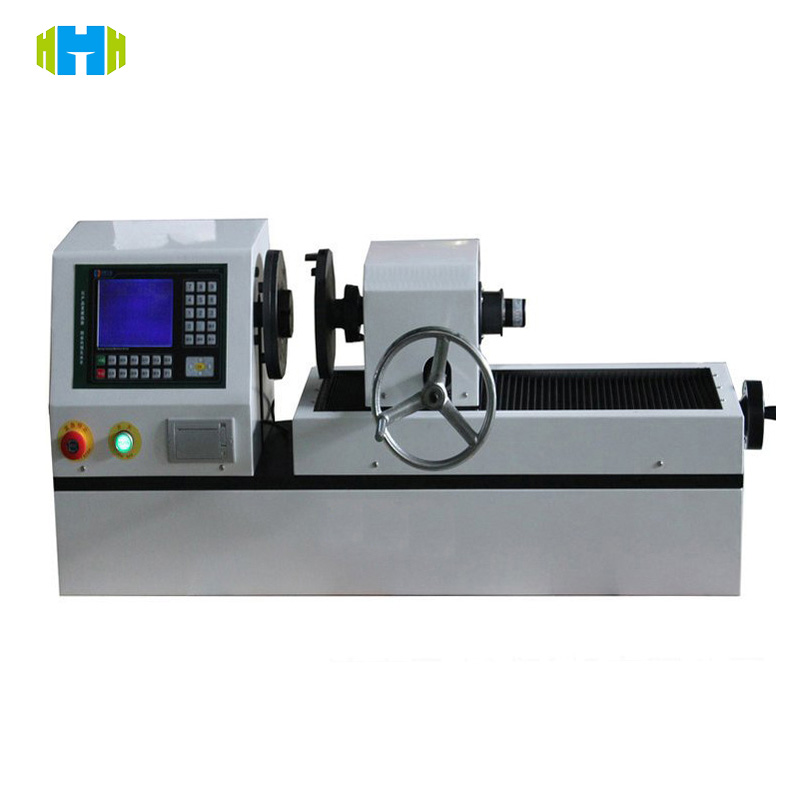

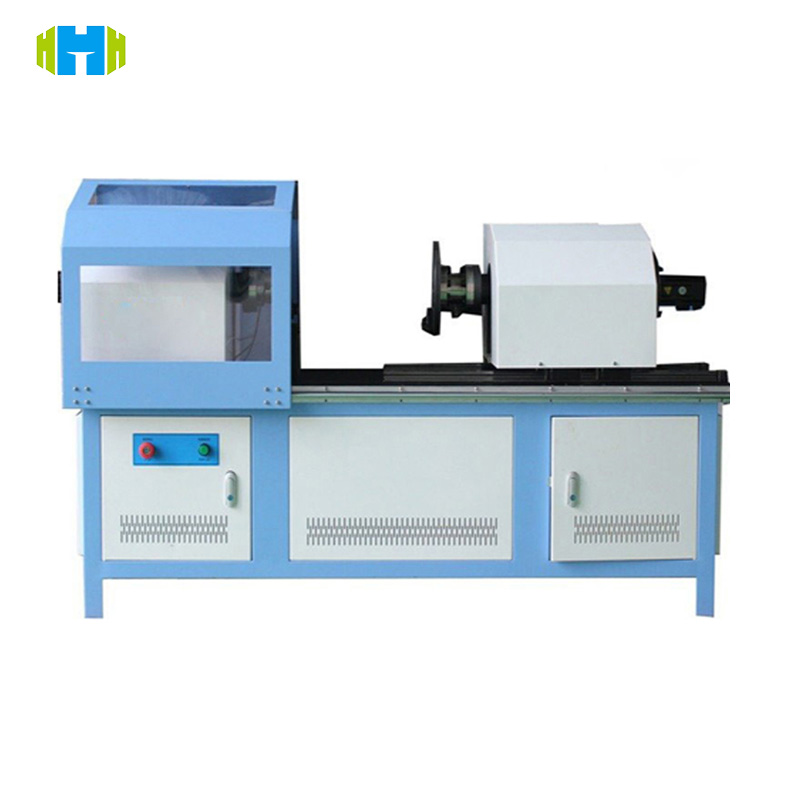

The automotive spring torque tester HJAPET0002 is a reliable partner in the field of automotive parts testing. It uses advanced technology and precision design to accurately measure the torque performance of automotive springs and other parts. By simulating the torque conditions in actual use, it provides accurate data for the quality assessment of automotive springs and ensures the reliability and stability of automotive parts under complex working conditions. Whether it is an automobile manufacturer or a parts supplier, it can be your right-hand man to improve product quality.

Product Features

• High-precision measurement: The precise measurement range is 1% FS - 100% FS, the torque indication error and repeatability error are better than 1%, and the angle measurement accuracy is also better than 1%. Like a precise measurement expert, it does not miss any subtle errors to ensure that every test result is accurate and reliable.
• Flexible and diverse attachments: Equipped with three-claw chuck and two-way tightening torsion attachments, it can adapt to the testing needs of different types of automotive springs. It is like a universal tool master, easily coping with various test scenarios.
• Safe and reliable: It has an overload protection function, like a caring safety guard, guarding at all times during the operation of the equipment to prevent overload from damaging the equipment and specimens and extending the service life of the equipment.
• Stepless speed regulation: The torsion speed control range is 0.01R/min - 5R/min stepless speed regulation, which meets the speed requirements of different tests, is flexible and convenient to operate, and makes your test more efficient.
• International reference standards
• The equipment complies with relevant automotive parts testing standards, such as ISO, SAE and other international standards, to ensure the universality and authority of the test results worldwide.
• Product use
• It is mainly used for torque performance testing of automotive springs and other parts, evaluating the performance of automotive springs under different torque conditions, and providing an important basis for the design, production and quality control of automotive parts.

Technical Parameters

1. Style: Horizontal
2. Testing machine level: Level 1
3. Accurate measurement range: 1% FS - 100% FS
4. Torque indication error: better than 1%
5. Torque repeatability error: better than 1%
6. Angle resolution: 0.01
7. Angle measurement accuracy: better than 1%
8. Torsion attachment: three-jaw chuck type, two-way tightening type
9. Test stroke: 300mm or 500mm (can be increased)
10. Torsion speed control range: 0.01R/min - 5R/min stepless speed regulation
11. Torsion speed control accuracy: better than 1%
12. Appearance: in line with GB/T2611 requirements
13. Protection function: The testing machine has overload protection function
14. Power supply: 220V, 50Hz

Test objects

Automobile springs, related automobile parts (such as parts involving torque testing).

Test items

Torque indication, torque repeatability, angle resolution, angle measurement accuracy, torsional speed control accuracy, etc.
