Single Phase And Three Phase Electrical Safety Analyzers IEC 62368-1 Certified Safety Test Equipment

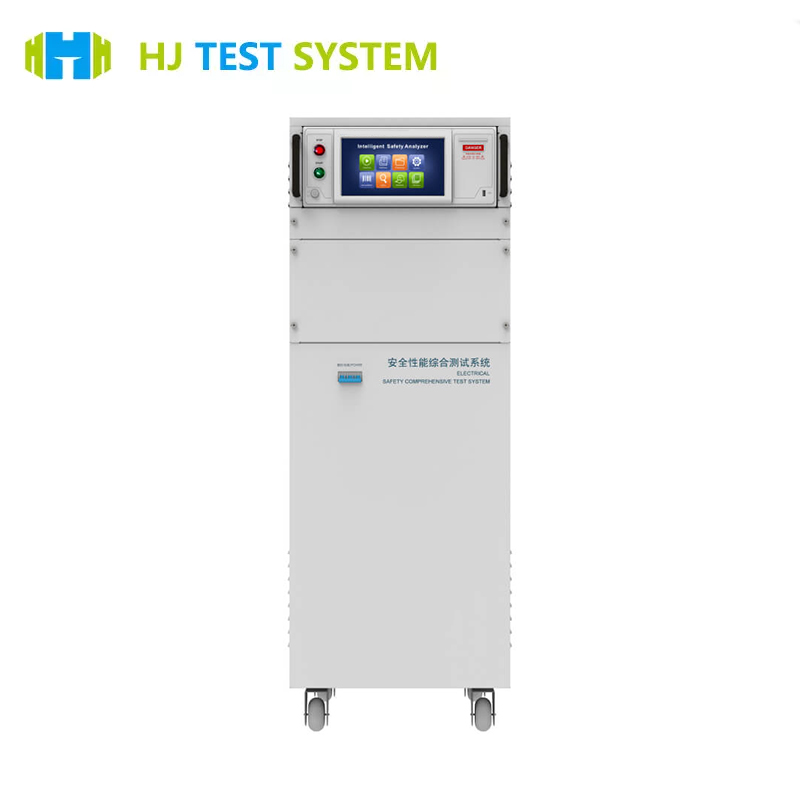

The HJST-010 Intelligent Safety Analyzer is an industrial-grade electrical safety test platform that integrates ACW/DCW/R/GB/LC/PWIST/loop tests. It features intelligent operation through the Android system and a 10-inch touch screen, meeting the 0.2% high-precision safety testing needs of single-phase/three-phase equipment, charging piles, and various electrical appliances.

  • Item No. :

    HJST-010
  • Minimum Order Quantity (MOQ) :

    1 set
  • Payment Method :

    T/T,L/C,Paypal
  • Price :

    Negotiatable
  • Product Origin :

    Türkiye,China
  • Supply Ability :

    3 units a month
  • Lead Time :

    60 days
  • Conventional packaging :

    Plywood

Single Phase And Three Phase Electrical Safety Analyzers IEC 62368-1 Certified Safety Test Equipment



Product Applications

✅ Production Line Quality Inspection

Full Safety Performance Inspection of Household Appliances (GB4706.1/IEC60335-1) and Charging Stations (GB/T18487.1)

✅ Laboratory Certification

Safety Pre-certification of Audio and Video Equipment (IEC62368-1) and Laboratory Instruments (IEC61010-1)

✅ Commercial Equipment Maintenance

Regular Safety Assessments of Central Air Conditioners, Commercial Kitchen Appliances, and Heaters



Product Highlights

🔹 Intelligent Scene Recognition:

Automatically identifies the device type under test (lighting/IT equipment/home appliance) and matches it to IEC/GB test standards

🔹 Ultra-Fast Parallel Testing:

Completes 8 safety tests in a single cycle, 4x faster than traditional equipment

🔹 Military-Grade Accuracy:

Safety test accuracy: ±1% / power test accuracy: ±0.2%, exceeding IEC61243-3 requirements

🔹 Multiple Start Modes:

Supports panel button/remote control/barcode scanning/ground clamp trigger testing

🔹 Future expansion capability:

8 MD module slots, upgradeable to specialized industry tests such as medical equipment (IEC60601)



International Reference Standards

Standard No. Applicable Clause Test Requirements
IEC 62368-1:2018 Clause 5.6.2 Leakage current ≤3.5mA for AV/IT equipment
IEC 61010-1:2020 Clause 6.3 Insulation resistance ≥100MΩ @500V DC
IEC 60335-1:2020 Clause 16.3 Ground bond resistance ≤0.1Ω at 25A
IEC 60598-1:2020 Annex K 3kV AC withstand voltage test (60s)



Technical Parameters

Parameter Category Specifications
Test Functions ACW/DCW/IR/GB/LC/PWIST/Loop/Dynamic Power
Test Accuracy Safety Parameters: ±1% / Power: ±0.2%
Voltage Range ACW: 0-5kV AC / DCW: 0-6kV DC
Resistance Range Insulation Resistance: 0.01MΩ-100GΩ
Leakage Current 0.001-20mA (AC+DC)
Ground Bond Test 0.001-1.2Ω @ 3-25A (Programmable current ramp)

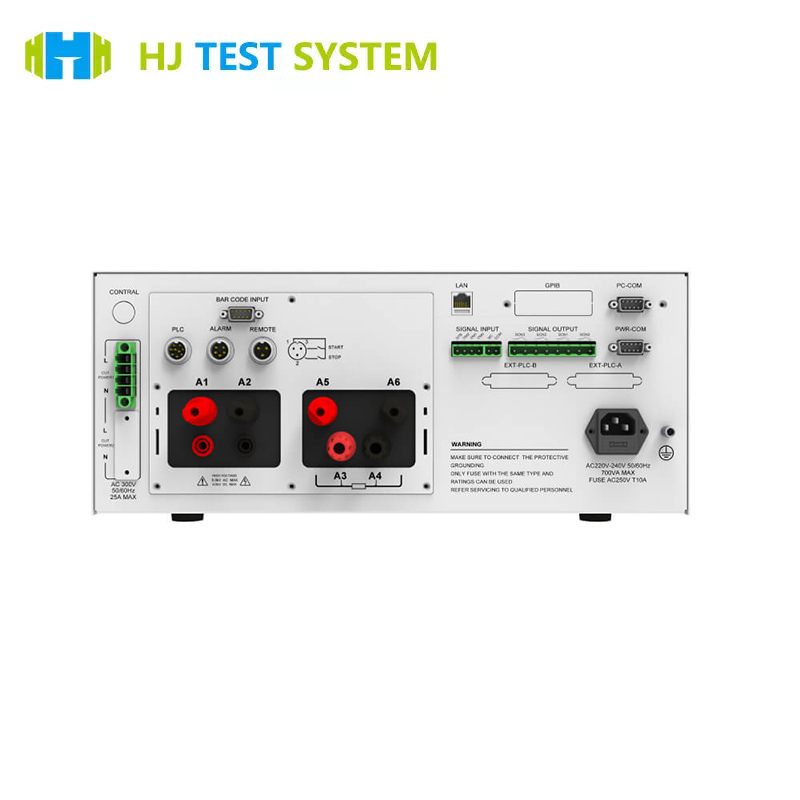

Control Interfaces RS232/LAN/USB/PLC/HDMI/Barcode Scanner
Display System 10" Capacitive Touchscreen (Android OS 9.0)
Data Management Local 200,000 records + Real-time MES upload
Power Supply AC 220V±15% / 50-60Hz / 3kVA
