Portable Single Phase Relay Tester IEC 61010 Compliant Maximum Output Current 0-250a Accuracy 0.5%

Portable Single Phase Relay Tester IEC 61010 Compliant Maximum Output Current 0-250a Accuracy 0.5%

Product Applications

This product is primarily used for on-site calibration and performance testing of various relays, particularly for testing the operating characteristics of overcurrent and overvoltage relays in power engineering companies. It also meets the needs of relay manufacturers for factory inspection and equipment status assessment during power operations and maintenance, providing data support for relay reliability.

Product Highlights

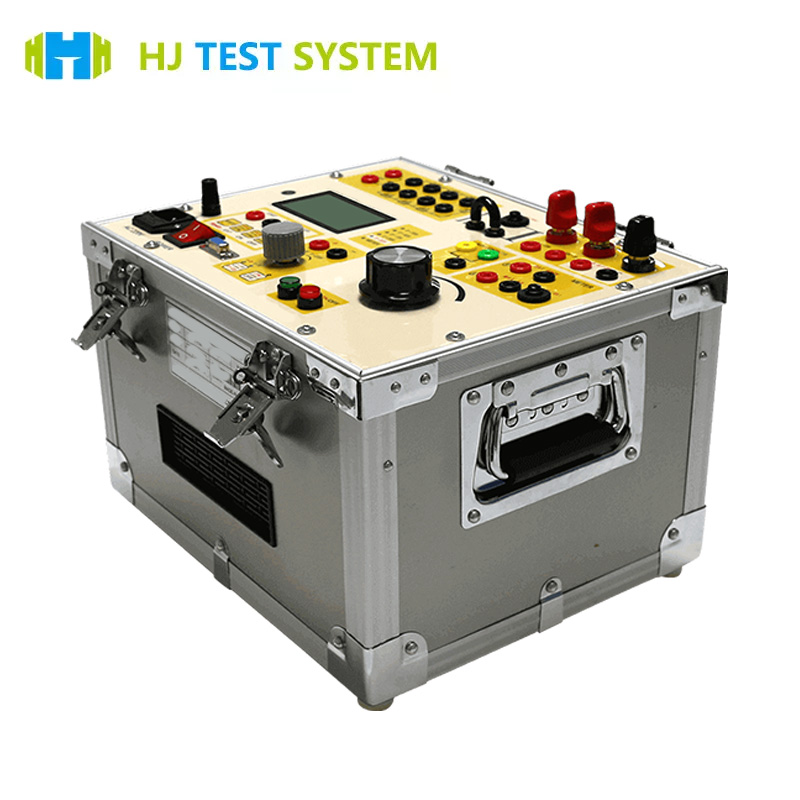

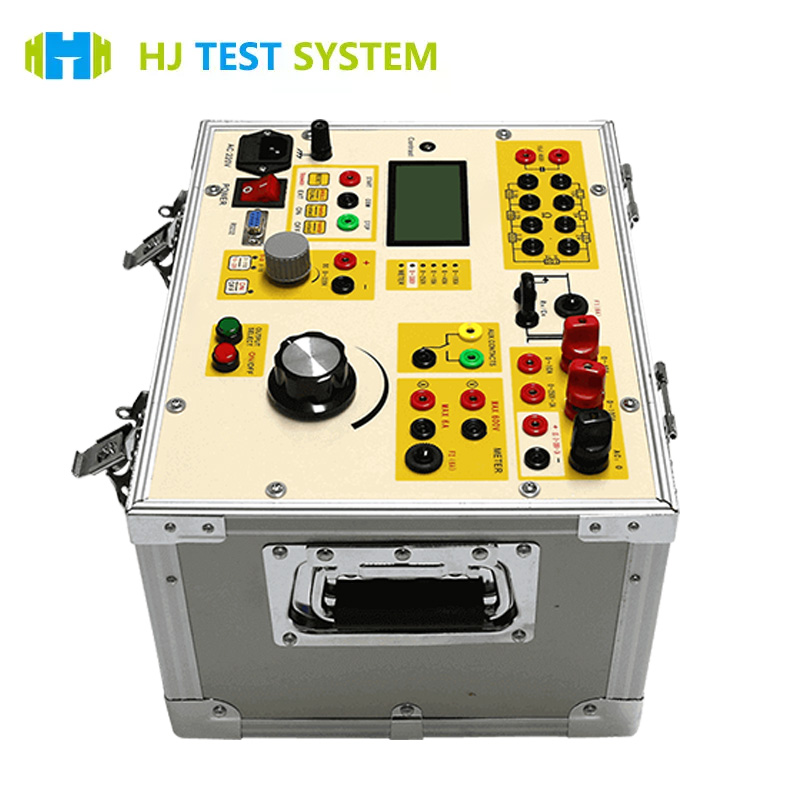

• Portable and Durable: The compact aluminum alloy body (340×270×260mm) and 18kg weight allow for portable field testing. A wide storage temperature range of -40°C to 70°C accommodates harsh environments.
• High-Precision Output: Current is adjustable from 0-250A and voltage from 0-300V (DC) with an accuracy of 0.5%. AC True RMS and DC Average measurements ensure reliable data.
• Comprehensive Safety Protection: Built-in automatic short-circuit, overload, and over-range protection, along with a fully isolated output circuit, prevents damage to equipment and personnel during testing. Multifunctional integration: Supports AC/DC voltage/current output, electronic stopwatch (0.1ms resolution), and RS232 data transmission, allowing for complete testing without additional equipment.

International Reference Standards

• IEC 61010-1:2010 "Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use - Part 1: General Requirements"
• Clause 6.3: Equipment enclosure protection level and mechanical strength requirements. This device's aluminum alloy body meets shock and vibration test standards.
• Clause 8.2: Output circuit isolation requirements. This device's fully isolated design meets safety regulations with an insulation resistance of ≥ 100MΩ.
• IEC 61326-1:2013 "Electrical Equipment for Measurement, Control, and Laboratory Use - Electromagnetic Compatibility Requirements - Part 1: General Requirements"
• Clause 4.2: Electromagnetic interference immunity. This device has passed EMC testing and maintains measurement accuracy even in strong electromagnetic environments. IEC 61000-4-2:2019 "Electromagnetic Compatibility - Part 4-2: Testing and Measurement Techniques - Electrostatic Discharge Immunity Test"
• Meets immunity requirements of 8kV contact discharge and 15kV air discharge, suitable for use in high-electromagnetic interference scenarios such as substations.

Technical Parameters
