Product Introduction

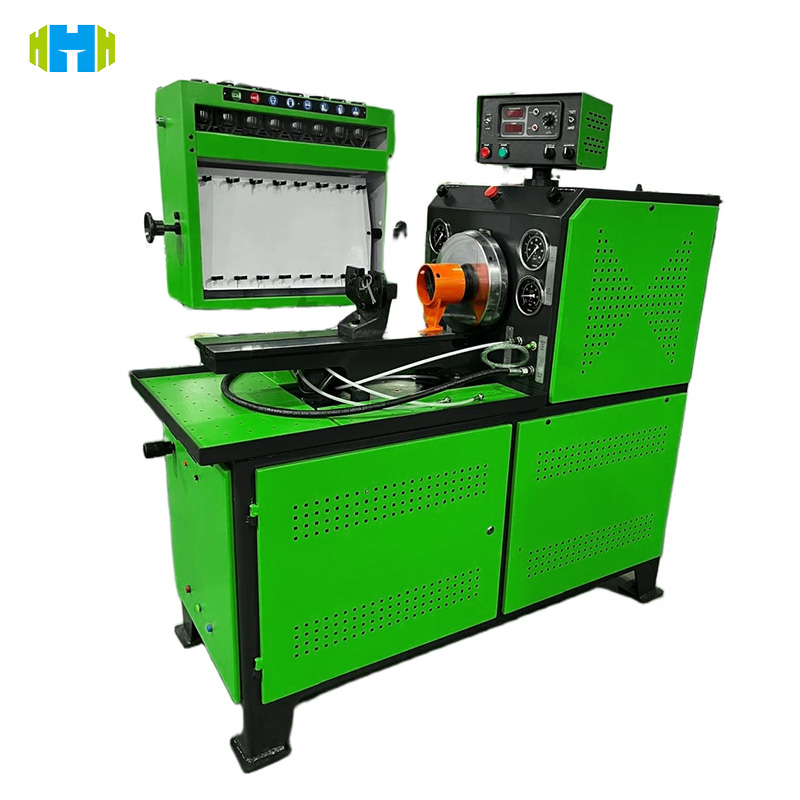

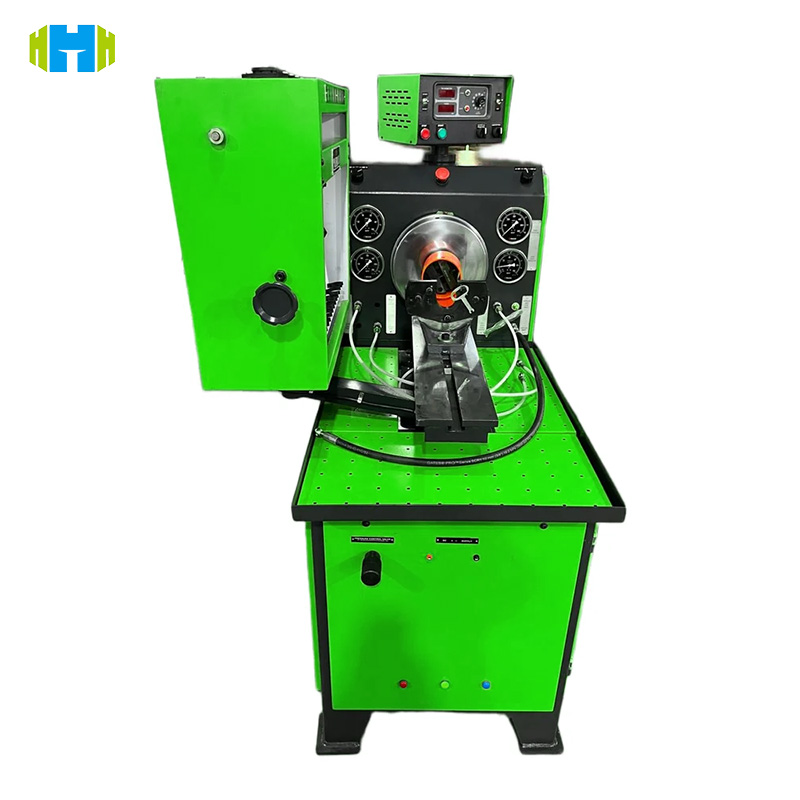

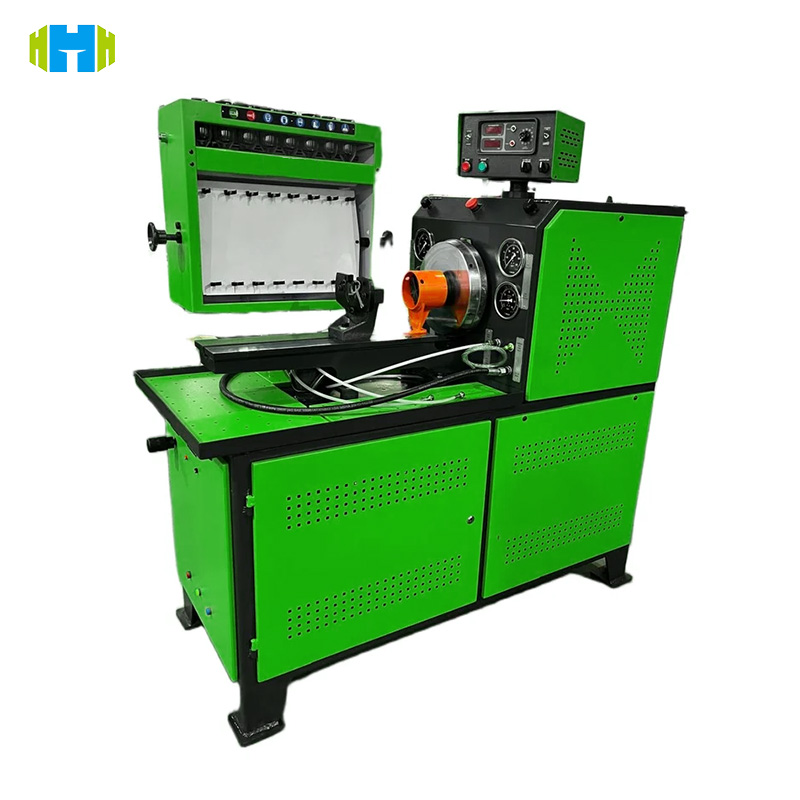

The HCLPT-004 Diesel Fuel Pump Test Bench stands out as a professional liquid pump testing solution, offering superior performance and precise testing capabilities. Equipped with advanced A.C. Inverter Drive technology and a powerful 5 H.P. main motor, the test bench can achieve an RPM range of 0-3000, catering to diverse testing requirements. Its robust main frame, constructed from 6 mm thick steel sections and 22 inches wide, ensures stability and durability during high-intensity testing.

The HCLPT-004 features high-precision pressure gauges, a tachometer, and a 40-liter steel oil tank to monitor test parameters in real-time. Additionally, the test bench includes a flexible flywheel and adjustable injector control, making it adaptable to various complex testing scenarios. Whether testing diesel engine fuel pumps or verifying the reliability of other liquid pumps, the HCLPT-004 provides accurate and efficient support.

Product Features

High-Efficiency Drive System: Utilizes A.C. Inverter Drive technology with a 5 H.P. main motor for efficient and stable power output.

Wide RPM Range: Capable of 0-3000 RPM, suitable for testing various liquid pumps.

Precise Monitoring: Equipped with high-precision pressure gauges (0-7, 0-2.5, 0-21, 0-42 Bar) and a tachometer for real-time test monitoring.

Durable Design: Main frame constructed from 6 mm thick steel sections and 22 inches wide for long-term stability.

Flexible Control: Features a 300 mm diameter flywheel and fixed 240 mm long glass tubes for injector control, adaptable to multiple testing scenarios.

Convenient Operation: Single solenoid operation and a flexible coupling (95 mm) simplify the testing process.

Scalability: Supports additional Inline & Rotary injector installations to meet customized testing needs.

International Standards Compliance

• ISO 9001:2015: Quality Management System, ensuring the production process meets international quality standards.
• ISO 14001:2015: Environmental Management System, minimizing environmental impact during production, use, and disposal.
• IEC 60034: Standards for rotating electrical machines, ensuring motor performance and safety.
• IEC 60204-1: Mechanical safety standards, ensuring operator safety during equipment operation.

Product Applications

• Diesel Engine Fuel Pump Testing: Evaluates performance metrics such as flow rate, pressure, and RPM.
• Liquid Pump R&D and Testing: Provides a reliable testing platform for research institutions to accelerate product development.
• Industrial Equipment Maintenance and Repair: Assists maintenance personnel in quickly identifying faults and improving equipment maintenance efficiency.
• Quality Inspection and Certification: Offers precise test data for manufacturers to ensure product quality meets standards.

Technical Specifications

Testing Objects and Detection Items

• Diesel engine fuel pumps
• Various liquid pumps (e.g., water pumps, oil pumps)

• Flow rate testing
• Pressure testing
• RPM testing
• Performance curve analysis
• Efficiency evaluation
• Leak detection
• Durability testing
