This boiler test system is a new online tool that automatically tests electric boilers. It uses modern tech to make sure they meet the strict quality standards that manufacturers around the world need to follow.
Item No. :
HJ-WMBT006Minimum Order Quantity (MOQ) :
1 SetPayment Method :
T/T,L/C,PaypalPrice :
NegotiatableProduct Origin :
Türkiye,ChinaSupply Ability :
One piece for three monthsLead Time :
90 working daysConventional packaging :
PlywoodFully automatic electric wall-mounted boiler test bench High-precision wall-mounted boiler performance detection system
Product introduction:
In the wall-mounted boiler industry, the four words "factory qualified" are the sense of security of countless families in winter. This equipment is designed for high-end wall-mounted boiler manufacturers, deeply integrating automatic control and multi-sensor collaborative technology to achieve one-stop zero-missing detection testing from components to complete machines.
Product Features:
As accurate as a "Swiss watch"
Using high-sensitivity sensors (accuracy level 0.5), temperature detection is as fine as ±0.1℃, and gas pressure sensing accuracy reaches 1Pa - let "almost" disappear from the quality inspection dictionary.
Automation: Free your hands and focus on innovation
One-click triggering of the test process, automatically generating Chinese/English/European standard reports. Workers are freed from boring records, and engineers focus on optimizing products - let talents do more valuable things.
Global standardized production
Pre-installed European standard/national standard dual mode, switching room helps products to be sold in 30 countries - you only need to produce, and we are responsible for compliance.
EN 15502-1:2017: Requirements and test methods for wall-mounted boilers with a net heat input up to 70 kW – Part 1: Gas-fired boilers.
EN 15502-2:2017: Part 2: Oil-fired boilers.
ISO 9001:2015: Quality management systems – Requirements, ensuring consistent quality in production and testing processes.
IEC 60335-1:2020: Household and similar electrical appliances – Safety – Part 1: General requirements, covering electrical safety of the tested boilers.
| Parameter | Technical Details |
| Model | HCTE-WMBT006 |
| Power Compatibility | ≤70kW (Customizable for Higher Power) |
| Sanitary System (Hot Water) | |
| Inlet Water Temp. Range | 0–40℃ (±0.5℃ Accuracy) |
| Outlet Water Temp. Range | 0–100℃ (±0.5℃ Accuracy) |
| Water Flow Range | 3–40L/min (±1.5 Class Accuracy) |
| Inlet Pressure Range | High: 0–1.6MPa / Low: 0–0.6MPa (0.5 Class Accuracy) |
| Heating System | |
| Inlet Water Temp. Range | 0–100℃ (±0.5℃ Accuracy) |
| Water Flow Range | 3–40L/min (±1.5 Class Accuracy) |
| Inlet Pressure Range | 0–1.6MPa (0.5 Class Accuracy, Heating-specific) |
| Electrical Parameter Testing | |
| Voltage Range | 0–300V (±0.5 Class Accuracy) |
| Current Range | 0–20A (±0.5 Class Accuracy, 70kW-compatible) |
| Power Range | 0–70kW (±0.5 Class Accuracy) |
| Control & Software | |
| Control Mode | PLC + 12-inch Touchscreen HMI (Custom Program Support) |
| Data Storage | ≥10,000 Records (Cloud + USB Export) |
| Test Report Generation | Auto-generated (with Timestamp + Test Curves) |
| Environment & Protection | |
| Ambient Temperature | 0–40℃ (Non-condensing) |
| Protection Rating | IP30 (Cabinet) / IP44 (Sensor) |
| Power Supply | AC380V±10%/50Hz, 1000W |
Electric wall-mounted boilers of various capacities (5kW - 30kW)
Wall-mounted boilers with different heating systems (water circulation, forced air)
Boilers with various control types (mechanical, electronic, smart)

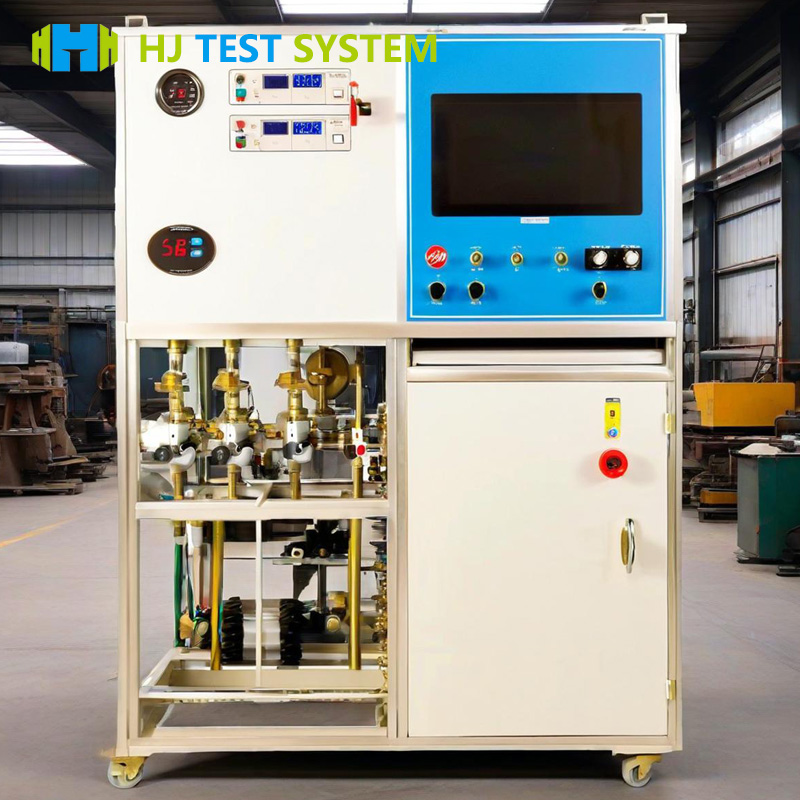

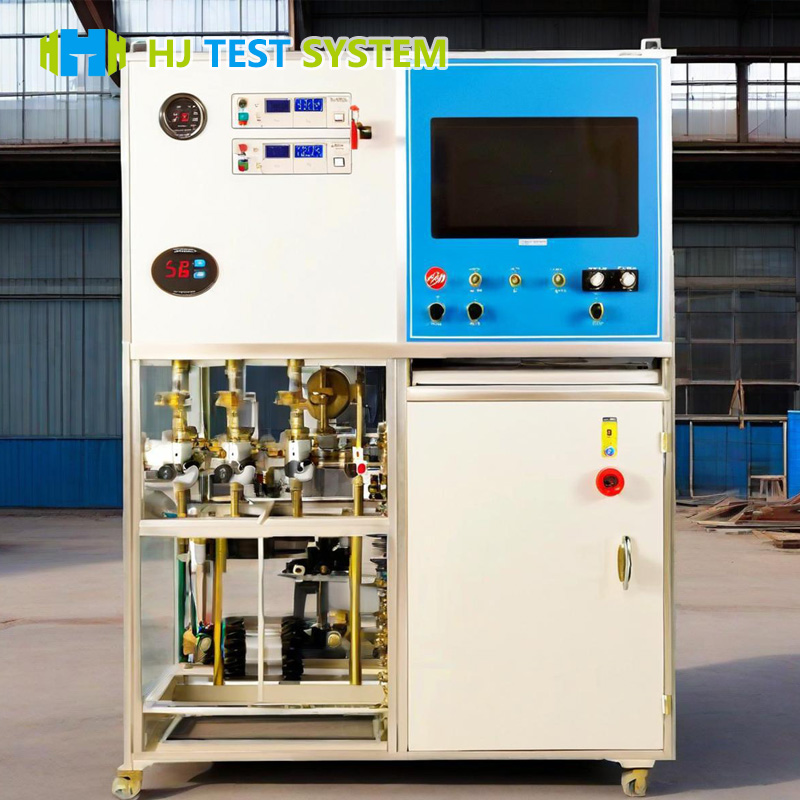

Detail pictures
